INVENTORY & ASSEMBLY (cont.)
Assembly

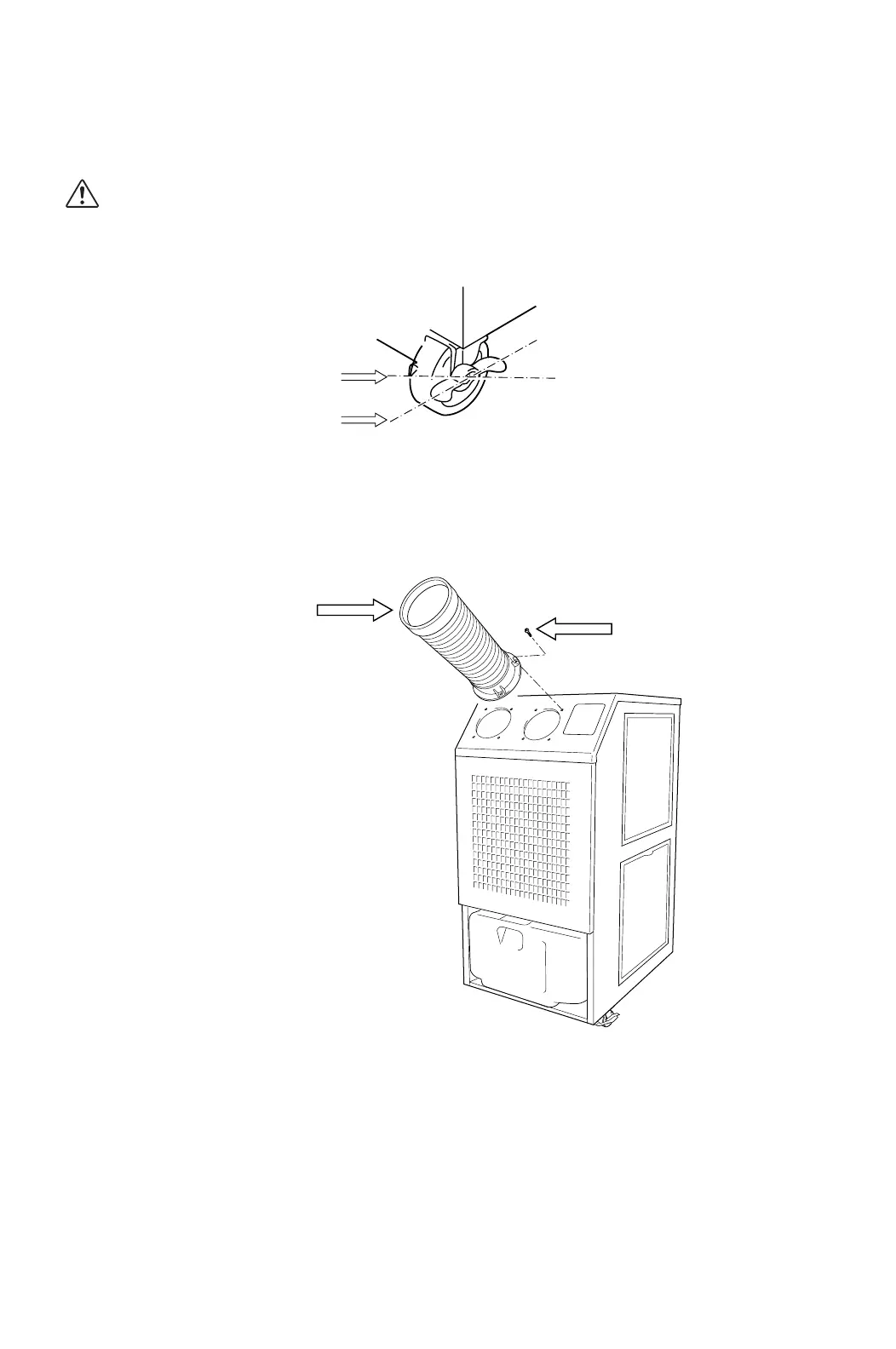

CAUTION: Before assembling make sure the unit is on a flat, level
surface and the casters are in the LOCKED position.
(Both the Classic 10 and Classic 18 MovinCool units have locking
swivel casters in the front only.)
Install each cool air outlet duct using 4 screws each as shown.
Note: Do not over tighten the screws when installing the cool air outlet ducts. This
could damage the base on the cool air outlet duct assembly.
UNLOCKED
LOCKED
SCREW (4 PER DUCT)
COOL AIR OUTLET DUCT
