5. Insert the warning signal wires through the hole in the rear panel and then through the hole in
the control box.
Recommended wire size: 16 AWG - 22 AWG
EXTERNAL WARNING DEVICE CONNECTION

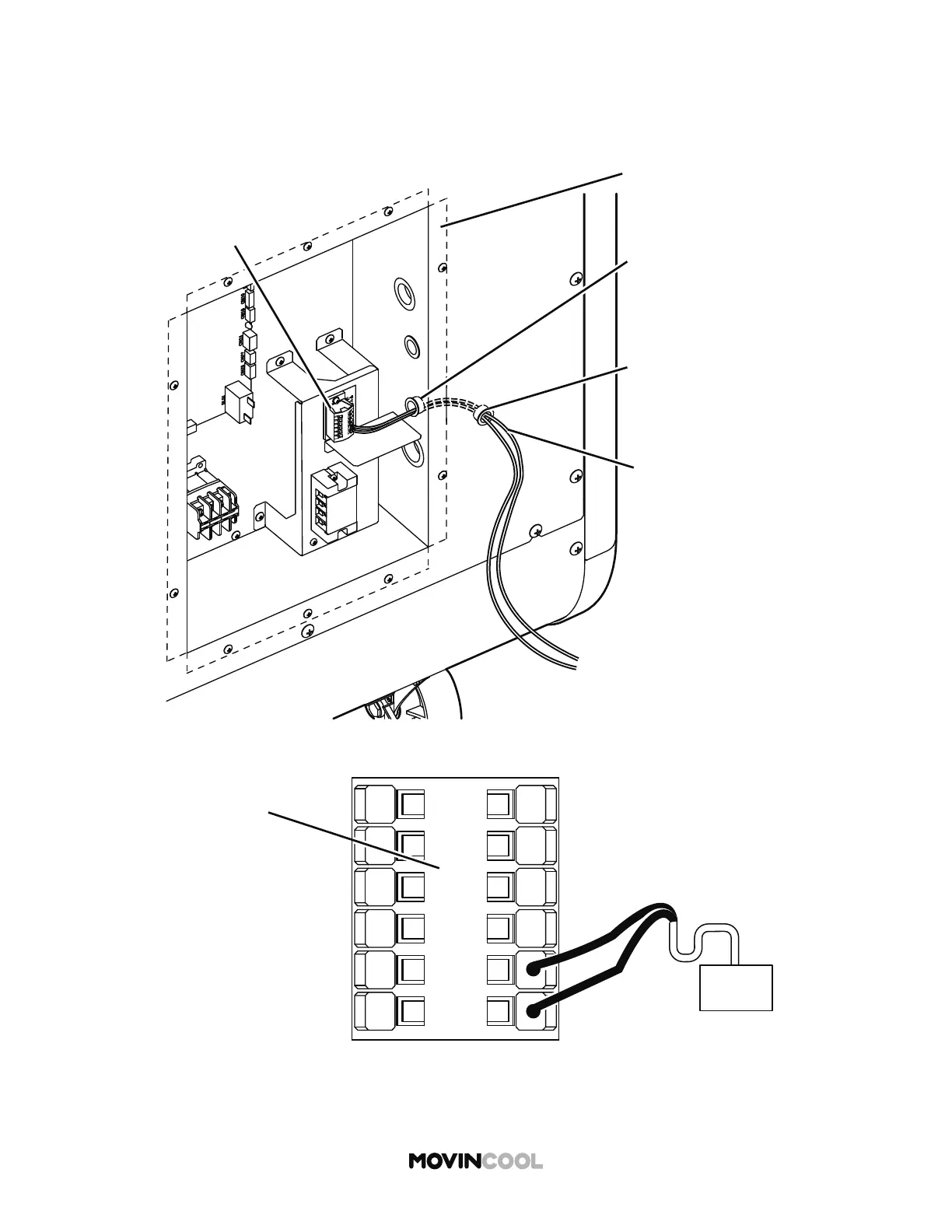

6. Connect the warning signal wires to the terminals OS-1 and OS-2 as shown in the figure.
7. Reinstall the rear panel so as not to pinch the wires between the control box flange and the
rear panel, and then reinstall the service panel.
OS-1
O
S
-2
FA-2
FA-1
AL-1
AL-2
Warning Device
Terminal Block
Hole in the Rear Panel
Route of Signal Wires
Terminal Block
Hole in the Control Box
Flange
To Next Page
