- 3 -

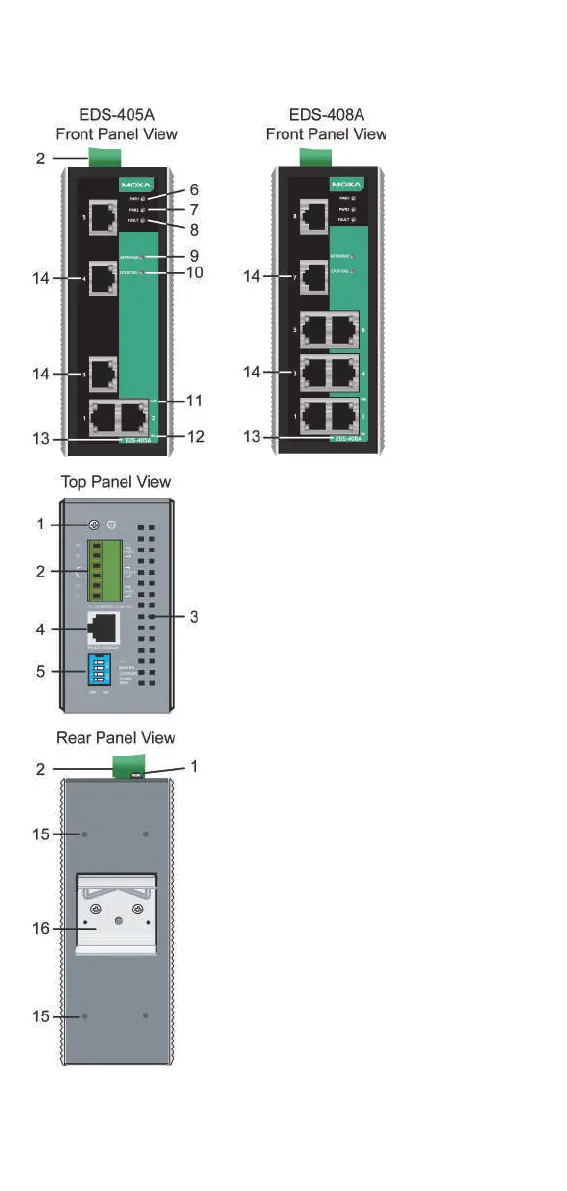

EDS-405A/408A Panel Layout (standard)
1. Grounding screw
2. Terminal block for power input
PWR1/PWR2 and relay output
3. Heat dissipation vents
4. Console port
5. DIP switches
6. Power input PWR1 LED
7. Power input PWR2 LED
8. Fault LED
9. MSTR/HEAD: LED indicator
10.
CPLR/TAIL: LED indicator
11.
TP port’s 100 Mbps LED
12.
TP port’s 10 Mbps LED
13.
Model Name
14.
10/100BaseT(X) ports
15.
Screw hole for wall mounting kit
16.
DIN-Rail kit
