— 6 —

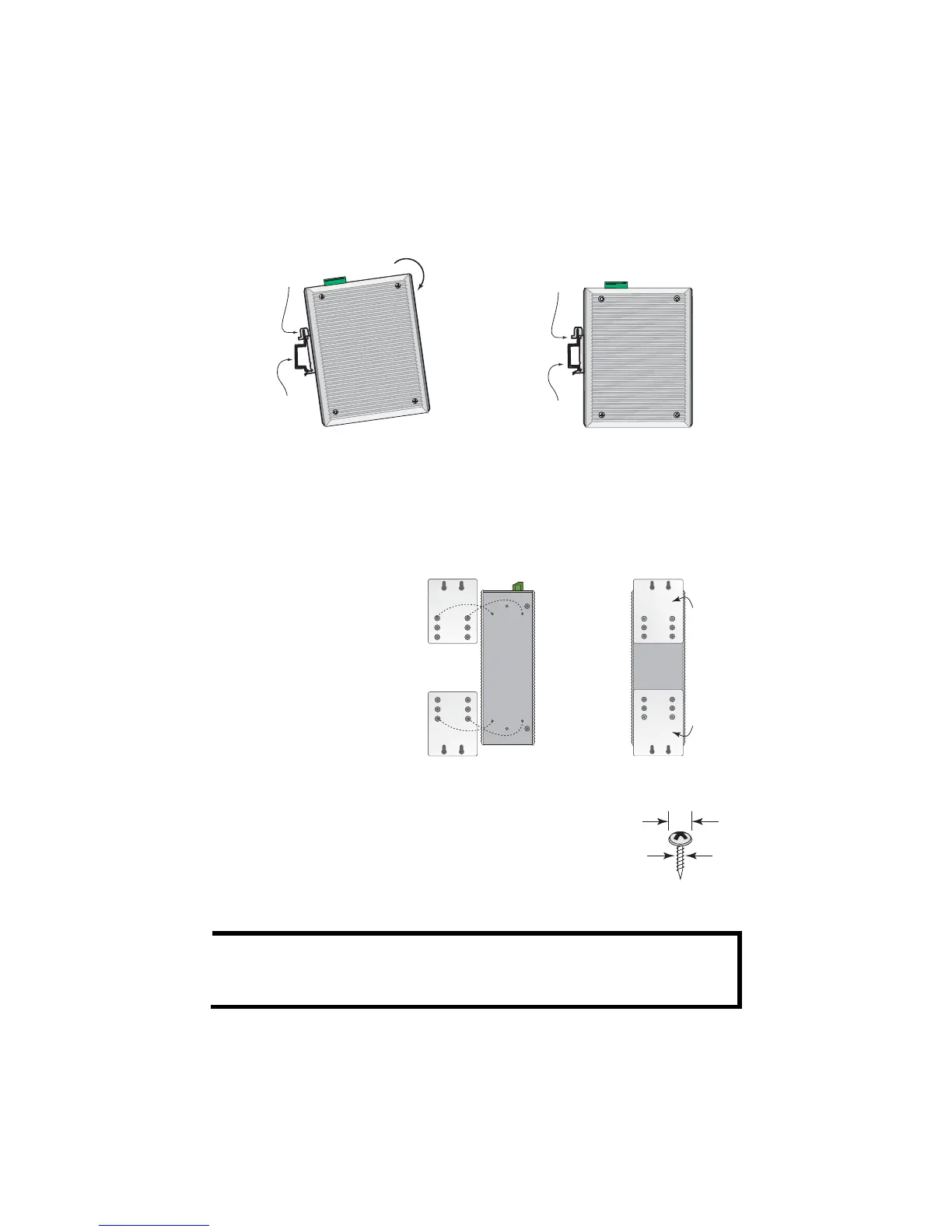

DIN-Rail Mounting
The aluminum DIN-Rail attachment plate should already be fixed to the back
panel of the EDS-408A when you take it out of the box. If you need to reattach
the DIN-Rail attachment plate, make sure the stiff metal spring is situated
towards the top, as shown in the following figures.
STEP 1:
Insert the top of the DIN-Rail into the
slot just below the stiff metal spring.
STEP 2:
The DIN-Rail attachment unit will
snap into place as shown.
metal
spring
DIN-Rail
metal
spring
DIN-Rail
To remove the Moxa EtherDevice switch from the DIN-Rail, simply reverse
Steps 1 and 2.
Wall Mounting (optional)
For some applications, you will find it convenient to mount the EDS-408A on
the wall, as shown in the following figures.
STEP 1: Remove the
aluminum DIN-Rail
attachment plate from the
EDS-408A’s rear panel, and
then attach the wall mount
plates with M3 screws, as
shown in the diagram at the
right.
⇒
top
plate
bottom
plate
STEP 2:
Mounting the EDS-408A on the wall requires 4 screws.
Use the switch, with wall mount plates attached, as a
guide to mark the correct locations of the 4 screws. The
heads of the screws should be less than 6.0 mm in
diameter, and the shafts should be less than 3.5 mm in
diameter, as shown in the figure at the right.
6.0 mm
3.5 mm
NOTE
Before tightening screws into the wall, make sure the screw head
and shank size are suitable by inserting the screw into one of the
keyhole-shaped apertures of the Wall Mounting Plates.
Do not screw the screws in completely—leave about 2 mm to allow room for
sliding the wall mount panel between the wall and the screws.
