Moxa Technologies EtherDevice EDS-G205A-4PoE User Manual

- 9 -

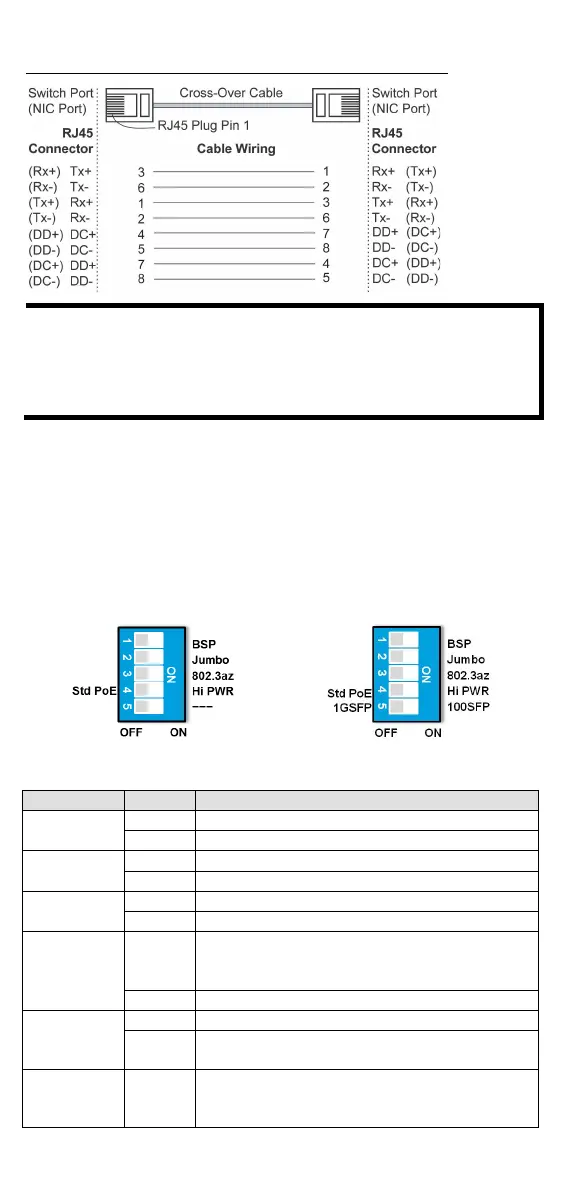

RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring
NOTE
If the PD only supports PoE MDI mode (V+, V+, V-, V- for pins 1,
2, 3, 6), choose a cross
-over Ethernet cable to connect the PD
and the EDS switch. If the PD only supports PoE MDI
-X mode (V-
,
V
-, V+, V+ for pins 1, 2, 3, 6), choose a straight-through
Ethernet cable between the PD and the EDS switch.
Redundant Power Inputs
Both power inputs can be connected simultaneously to live DC power
sources. If one power source fails, the other live source acts as a backup,
and automatically supplies all of the EDS’s power needs.
DIP Switch Settings
The default setting for each DIP Switch is OFF. The following table
explains the effect of setting the DIP Switches to the ON positions.
EDS-G205A-4PoE
(Copper Model)
EDS-G205A-4PoE-1GSFP
(SFP Model)
DIP Switch
Setting
Description
BSP
ON
Enable broadcast storm protection
OFF
Disable broadcast storm protection
Jumbo Frame
ON
Enable jumbo frame function
OFF
Disable jumbo frame function
802.3az
ON
Enable the energy-efficient Ethernet function
OFF
Disable the energy-efficient Ethernet function
PoE High
Power
ON
Supports PoE high power output up to 36 W. PoE
high power is activated when an 802.3af or
802.3at connection is detected.
OFF
Supports standard PoE power output up to 30 W
100/1G SFP
(For SFP
model only)
ON
Supports 100M SFP module
OFF Supports 1000M SFP module
–––
(For copper
model only)
– Serves no function (reserved for future use)
