Moxa Technologies MGate MB3480 User Manual

MGate MB3000 Modbus Gateway User Manual
32
Jumpers

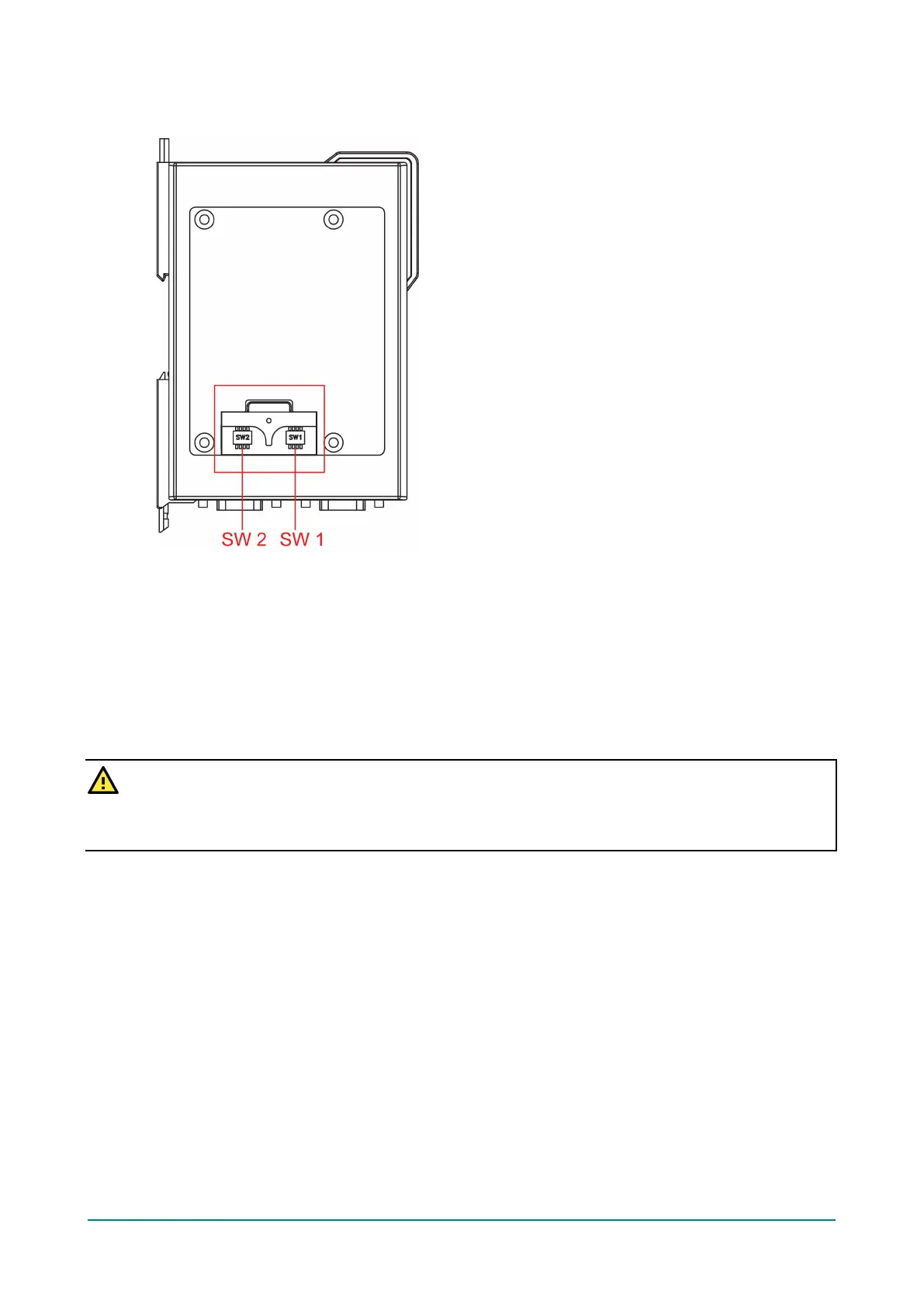

The DIP switches are located beneath the DIP switch panel on the side of the unit.
To add a 120
Ω termination resistor, set switch 3 on the port’s assigned DIP switch to ON; set switch 3
to OFF (the default setting) to disable the termination resistor.
To set the pull high/low resistors to 150 K
Ω, set switches 1 and 2 on the port’s assigned DIP switch to
OFF. This is the default setting.
To set the pull high/low resistors to 1 K
Ω, set switches 1 and 2 on the port’s assigned DIP switch to
ON.
Switch 4 on the port’s assigned DIP switch is reserved.
ATTENTION
Do not use the 1 KΩ pull high/low setting on the MGate MB3000 when using the RS-232 interface. Doing
so will degrade the RS-232 signals and reduce the effective communication distance.
