MGate MB3000 Modbus Gateway User Manual
30
7. Hardware: MB3270, MB3270I
This chapter provides hardware information for the MGate MB3270 and MB3270I.

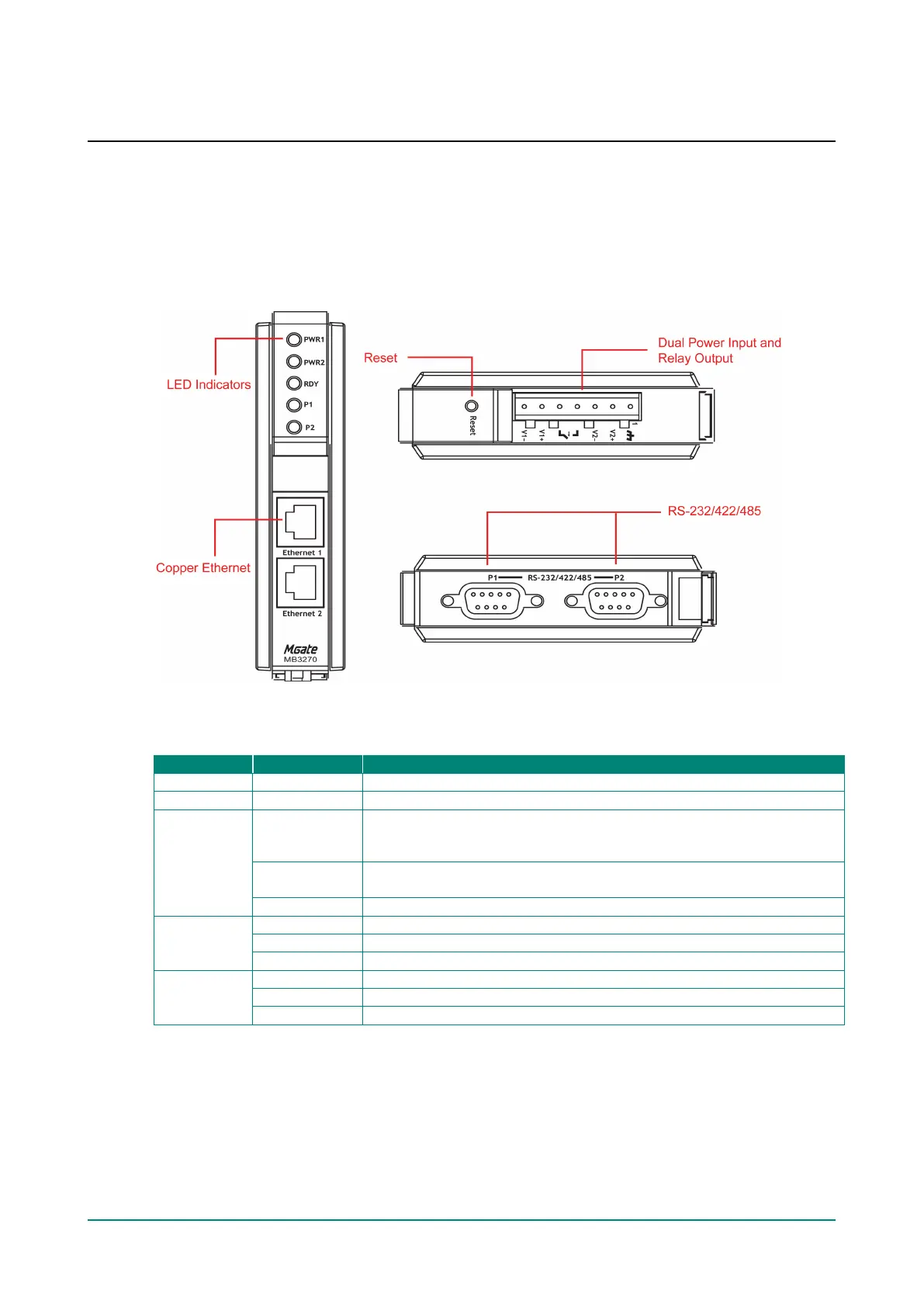

Panel Layout
LED Indicators
Name
Color
Function
PWR1
Red
Power is being supplied to the power input.
PWR2
Red
Power is being supplied to the power input.
RDY
Red
Steady on: Power is on and unit is booting up.
Blinking: IP conflict, the DHCP or BOOTP server did not respond properly,
or a relay output occurred.
Green
Steady on: Power is on and unit is functioning normally.
Blinking: Unit is responding to software Locate function.
Off
Power is off, or power error condition exists.
Ethernet
Amber
10 Mbps Ethernet connection.
Green
100 Mbps Ethernet connection.
Off
Ethernet cable is disconnected, or has a short.
P1, P2
Amber
Serial port is receiving data.
Green
Serial port is transmitting data.
Off
No data is being transmitted or received through the serial port.
