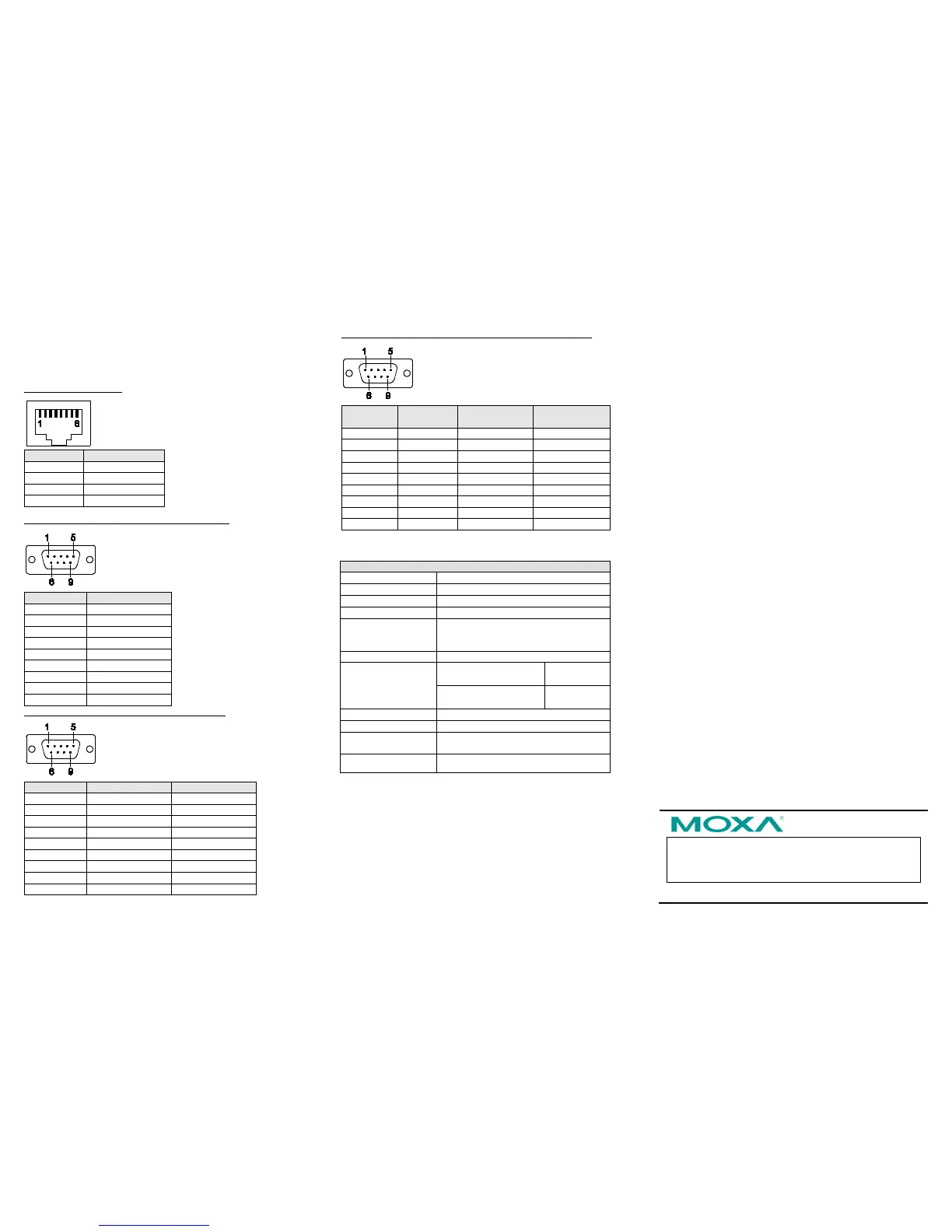

6. Pin Assignments
Ethernet Port Pinouts
Pin Number
Ethernet
1
Tx+
2
Tx-
3
Rx+
6
Rx-
NPort 5110—DB9 male (RS-232) port pinouts
Pin Number
RS-232
1
DCD
2
RxD
3
TxD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
---
NPort 5130—DB9 male (RS-422/485) port pinouts
Pin Number
RS-422/485 (4W)
RS-485 (2W)
1
TXD-(A)
---
2
TXD+(B)
---
3
RXD+(B)
Data+(B)
4
RXD-(A)
Data-(A)
5
GND
GND
6
---
---
7
---
---
8
---
---
9
---
---
NPort 5150—DB9 male (RS-232/422/485) port pinouts
Pin Number
RS-232
RS-422/485
(4W)
RS-485 (2W)
1
DCD
TXD-(A)
---
2
RxD
TXD+(B)
---
3
TxD
RXD+(B)
Data+(B)
4
DTR
RXD-(A)
Data-(A)
5
GND
GND
GND
6
DSR
---
---
7
RTS
---
---
8
CTS
---
---
9
---
---
---
7. Specifications
Power Requirements
Power Input
12 to 48 VDC
Power Consumption
NPort 5110: 128.7 mA@12V, 72 mA@24V
NPort 5130: 200 mA@12V, 106 mA@24V
NPort 5150: 200 mA@12V, 106 mA@24V
Operating
Temperature
0 to 55°C (32 to 131°F), for standard
models
-40 to 75°C (-40 to 167°F), for -T models
Operating Humidity
5 to 95% RH
Dimensions
75.2
×
80
×
22 mm
(2.96 × 3.15 × 0.87 in)

including
ears
52 × 80 × 22 mm
(2.05 × 3.15 × 0.89 in)

without ears
Serial Line Protection
15 KV ESD for serial port
Magnetic Isolation
1.5 KV for Ethernet
Power Line Protection
Level 2 Burst (EFT), EN61000-4-4
Level 2 Surge, EN61000-4-5
Regulatory Approvals FCC Class A, CE Class A, UL, LVD
