NPort's Pair Connection Mode
Copyright © 2023 Moxa Inc.

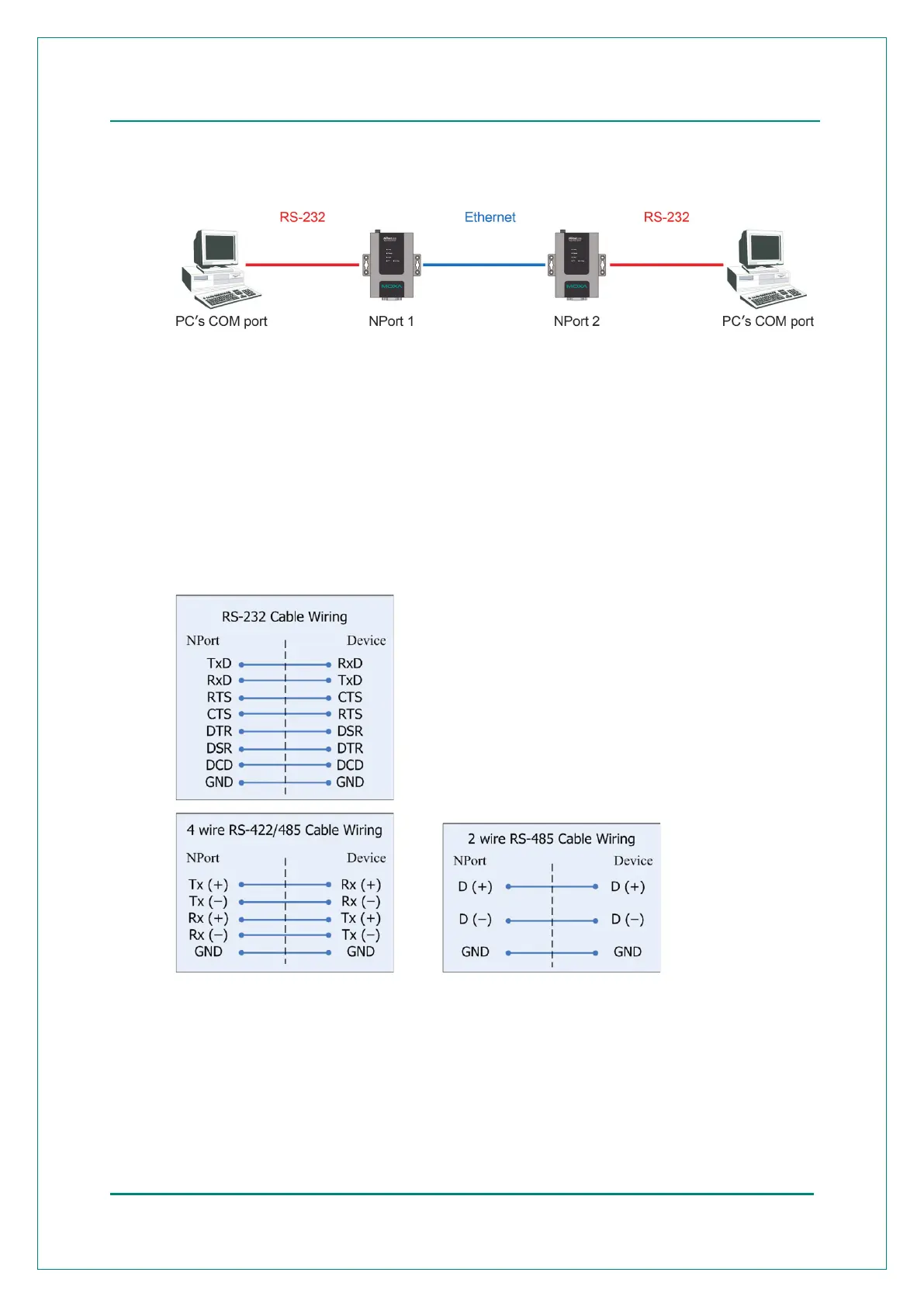

3 How to Test Pair Connection Mode
1. Configure NPort#1 for Pair Connection Master and NPort#2 for Pair Connection Slave,
and then assign proper IP addresses to both NPorts.
2. Connect a different PC to each of the two NPorts’ serial ports, and then use terminal
software (e.g., HyperTerminal or Moxa’s PComm Terminal Emulator) to test
communication.
3. Pair Connection mode has been established if you can transmit data from the COM
port of PC#1 to the COM port of PC#2, as shown on the terminal, and also see that
PC#1 can receive data from PC#2.
4 Cable Wiring
