Moxa Technologies NPort 5610-8-DT User Manual

NPort 5600-8-DT/DTL Series Overview of Hardware
2-7
8 DTR – –
The NPort 5610-8-DT-J only supports RS-232 signals.

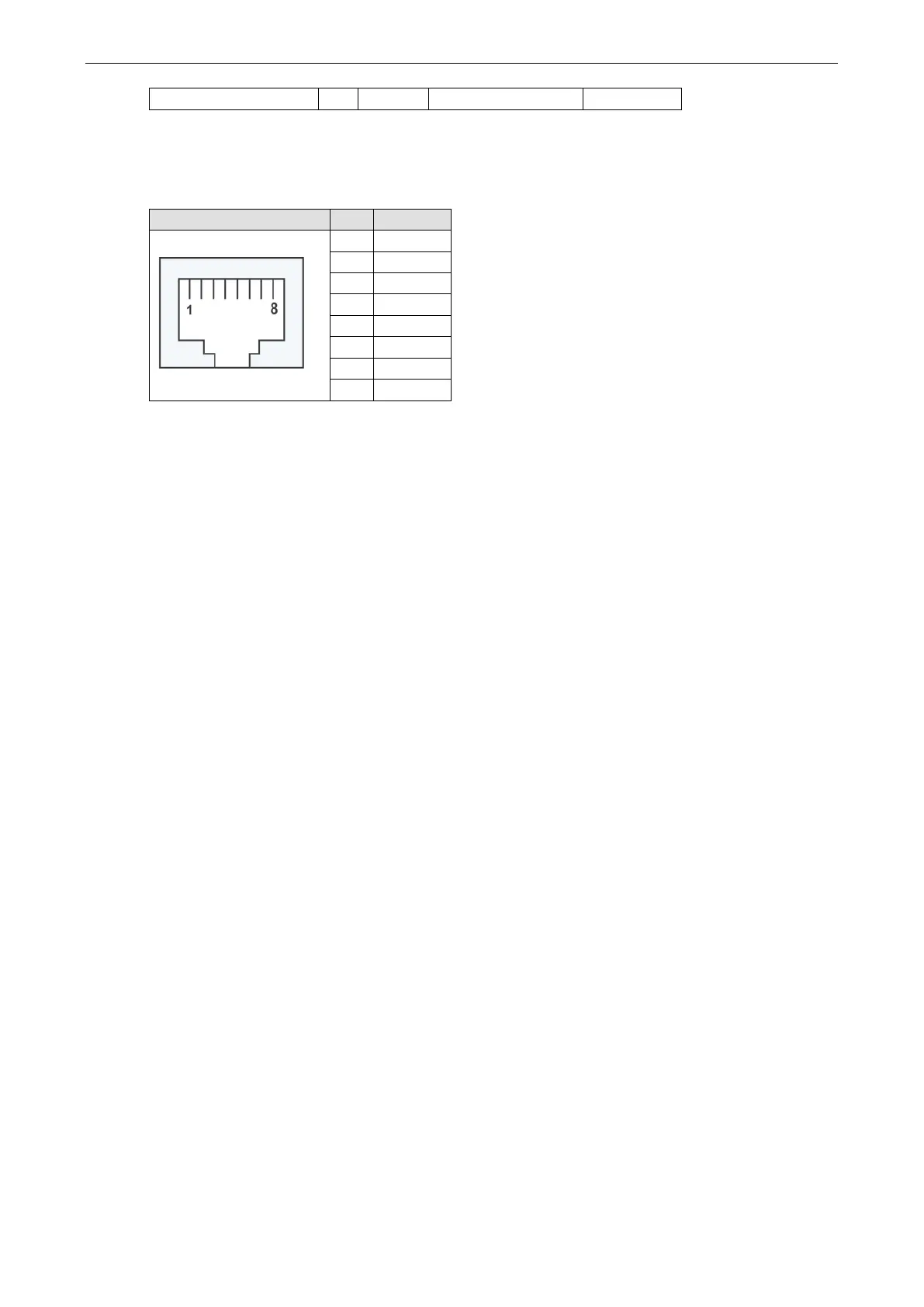

Console Port Pinouts (applies only to DT models)
RJ45 Connector Pin RS-232
1
DSR
2 RTS
3 GND
4 TxD
5 RxD
6 DCD
7 CTS
8 DTR
Product Specifications
NPort 5600-8-DT
Ethernet Interface
Number of Ports:
2 (1 IP)
Speed:
10/100 Mbps, auto MDI/MDIX
Connector:
8-pin RJ45
Magnetic Isolation Protection:
1.5 KV built-in
Serial Interface
Number of Ports:
8
Serial Standards:
NPort 5610
-8-DT: RS-232
NPort 5650-8-DT: RS-232/422/485
Connector:
NPort
5610-8-DT/5650-8-DT/5650I-8-DT: DB9 male
NPort 5610
-8-DT-J/5650-8-DT-J: RJ45 (8 pins)
Serial Line Protection:
15 KV ESD protection for all signals
2 KV isolation protection (NPort 5650I
-8-DT only)
RS
-485 Data Direction Control: ADDC® (automatic data direction control)
Pull High/Low Resistor for RS
-485: 1 KΩ, 150 KΩ
Terminator for RS
-485: 120 Ω
Serial Communication Parameters
Data Bits:
5, 6, 7, 8
Stop Bits:
1, 1.5, 2
Parity:
None, Even, Odd, Space, Mark
Flow Control:
DSR/DTR and RTS/CTS (RS-232 only), XON/XOFF
Baudrate:
50 bps to 921.6 Kbps
Serial Signals
RS
-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS
-422: Tx+, Tx-, Rx+, Rx-, GND
RS
-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS
-485-2w: Data+, Data-, GND
Software
www.ipc2u.ru
www.moxa.pro
