3

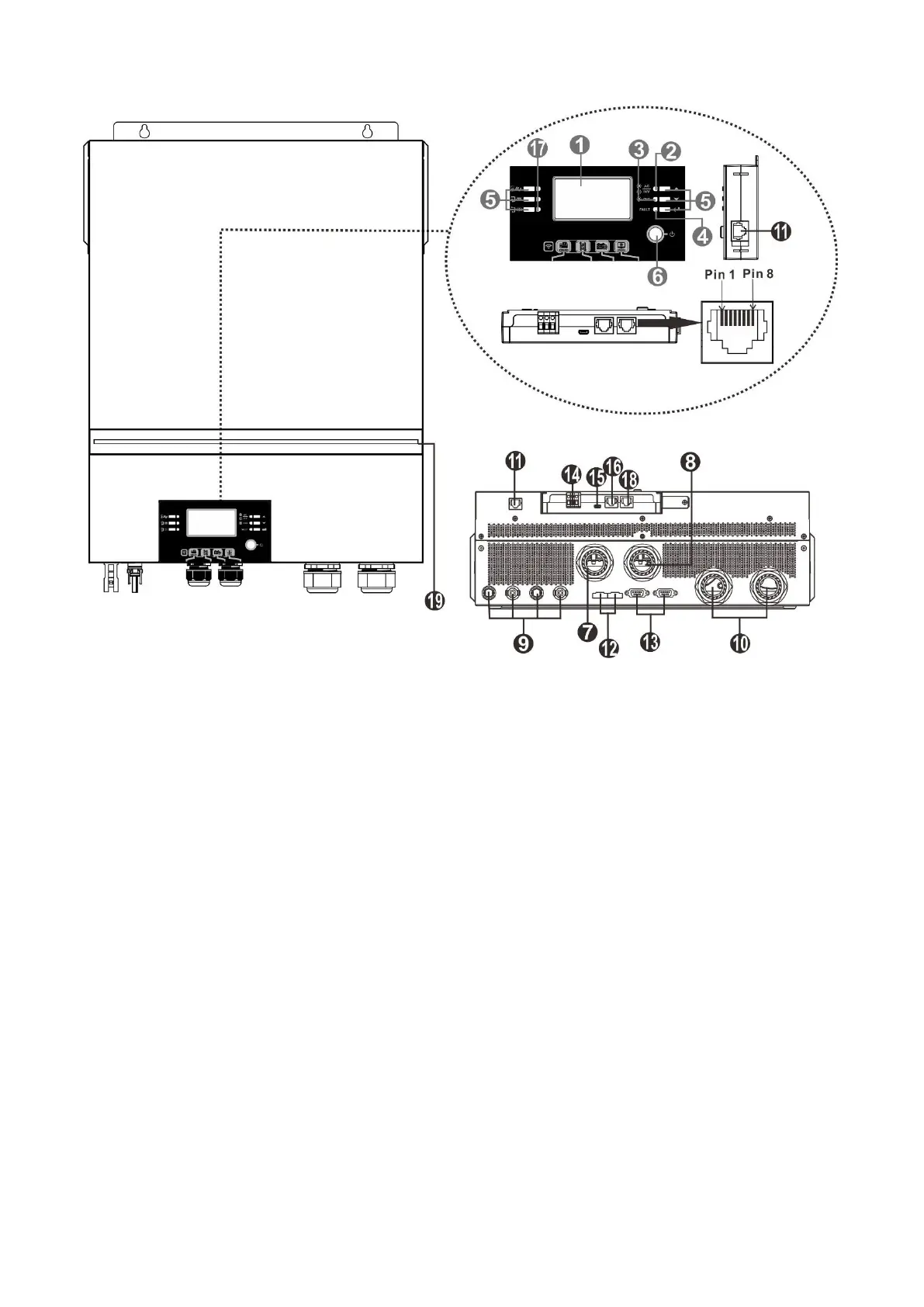

Product Overview
NOTE: For parallel installation and operation, please check
Appendix I.
1. LCD display 12. Current sharing port
2. Status indicator 13. Parallel communication port
3. Charging indicator 14. Dry contact
4. Fault indicator 15. USB port as USB communication port and USB function port
5. Function buttons 16. BMS communication port: CAN, RS-485 or RS-232
6. Power on/off switch 17. Output source indicators (refer to OPERATION/Operation
7. AC input connectors and Display Panel section for details) and USB function
8. AC output connectors (Load connection) setting reminder (refer to OPERATION/Function Setting for
9. PV connectors the details)
10. Battery connectors 18. RS-232 communication port
11. Remote LCD module communication 19. RGB LED bar (refer to LCD Setting section for the details)
port
