MPPT ML Series - 6 Conversion Efficiency Curve; System Conversion Efficiency; 7 Product Dimensions

20
Conversion efficiency（%）
19
238
173
180
147
4X 4.5Φ
4X 10Φ
6X 8Φ
72.5
72.5
168
123.5
ML2430N10/ML2440N10
Product dimensions：238*173*72.5mm
Hole positions：180*147mm
Hole diameter：Φ3mm
Applicable wire: max. 8 AWG
22
151
210
131
154
59.5
4X 9Φ
4X 4.5Φ
8
59.5
6X 7Φ
9.3
17
143.6
111

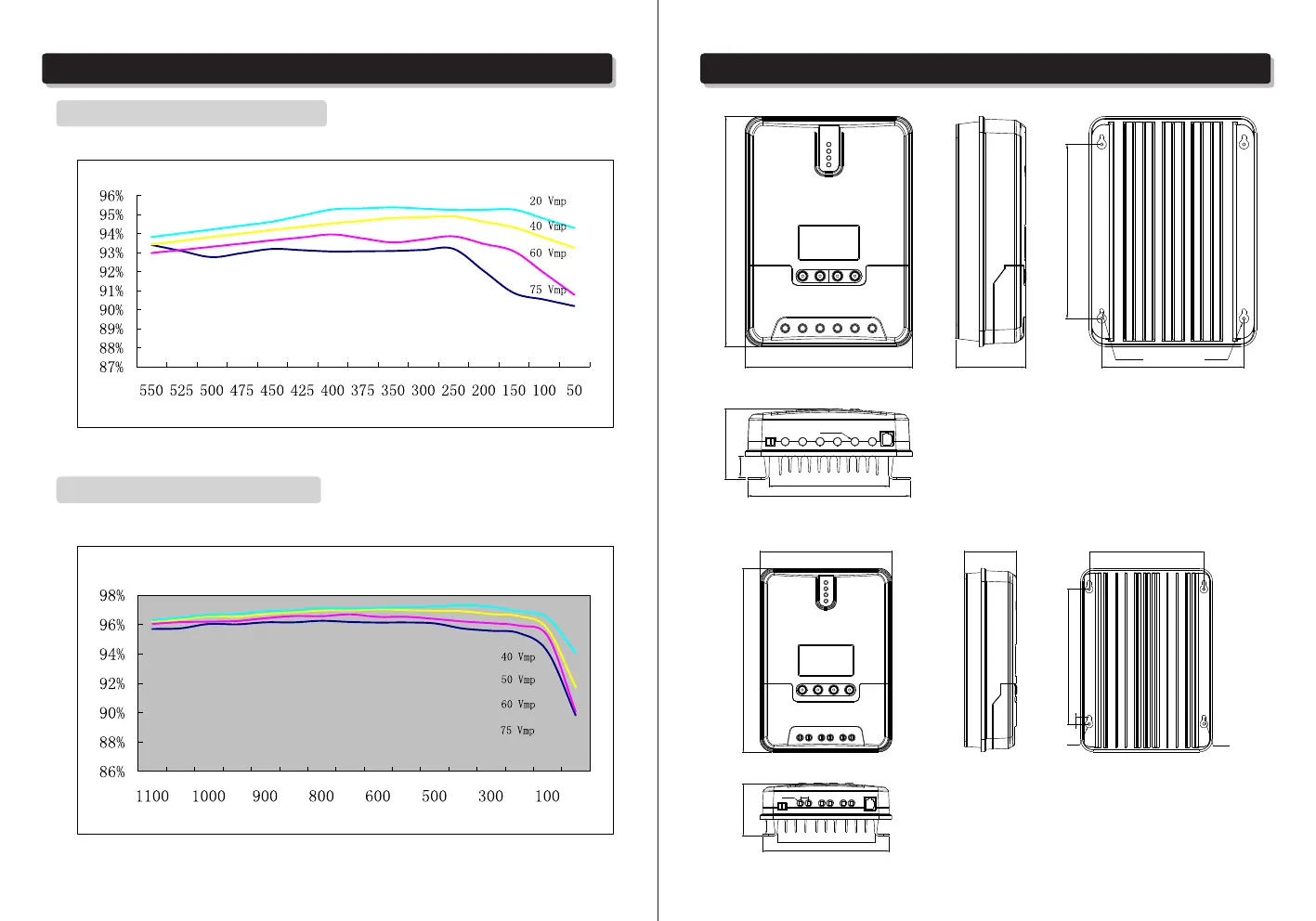

6. Conversion Efficiency Curve
6.1 12V System Conversion Efficiency
MPPT 12V conversion efficiency (12V battery)
Output power（W）
6.1 24V System Conversion Efficiency
MPPT 24V conversion efficiency (24V battery)
Output power（W）
Conversion efficiency（%）
7. Product Dimensions
ML2420N10
Product dimensions：210*151*59.5mm
Hole positions：154*131mm
Hole diameter：Φ3mm
Applicable wire: max. 8 AWG
