Determine at a glance if a circuit is positive, negative, or open without having to
reconnect clips from one battery pole to another.
Test for continuity with its built-in auxiliary ground lead.
By depressing the power switch, conduct a positive or negative battery current
to the probe tip for testing the function of an electrical component withou the
use of jumper wires.
Test for poor ground contacts instantly withou performing voltage drop tests,
The tool is also short-circuit protected, its internal circuit breaker will trip if it
becomes over-loaded.
Follow and locate short circuits without wasting fuses, The tool's long cable
allows you to test along the entire length of the vehicle without constantly
searching for suitable vehicle grounds.
The tool is the best electrical tester for reducing diagnostic time in all 6 to 30 volt
vehicle electrical systems. After a simple hook-up of the tool to the vehicle's
battery, you can:

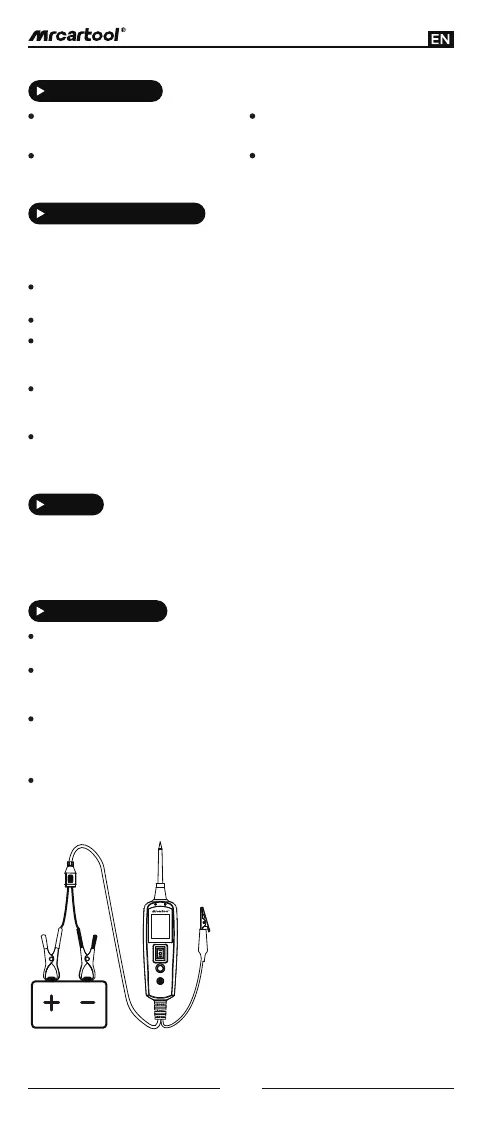

The tool is powered via the vehicle battery, connect the RED battery clamp to the
positive terminal of the vehicle's battery, and the black clamp to the negative
terminal, When the tool is first connected to a battery, it will sound a beep and the
head lights will be on to illuminate the test area of the probe tip.
IMPORTANT:
When powering up components, you
can increase the life of power switch in
the tool if you first press the switch, then
contact the tip to the component, the
arcing will take place at the tip instead
of the contacts of the switch.
Specifications
General Description
Before you test a circuit or component, be sure your tool is in good order by
doing a quick self-test.
With the tool connected, a quick self-test can be performed. The power switch
is a momentary rocker switch located on the device, flanking the switch are
positive and negative markings.
Press the power switch forward to activate the tip with a positive voltage. The
red LED should light and the LCD display will read the battery voltage, If the
tone feature is turned on. a high pitched tone will sound. Let go of the power
switch and the LED will turn off and the high tone will stop.
Press the power switch rearward to activate the tip with a negative voltage. The
green LED should light and the LCD display will read the ‘0.0V’ (ground). If the
tone feature is turned on, a low-pitched tone will sound. Let go of the power
switch and the LED will turn off and the low tone will stop.
Power
Quick Self-test
Display
TFT color display (160 x 128 dpi)
Operating Temperature
0 to 60℃ ( 32 to 140 ℉)
Storage Temperature
-40 to 70 ℃ (-40 to 158 ℉)
External Power
12V/24V battery
2
