3. Outdoor Unit Disassembly
3.1 Panel Plate
1. D30
Procedure Illustration
1) Turn off the air conditioner and the
power breaker.
2) Remove three screws and then remove
the shield. (see CJ_Multi_D30-001).
For US models, remove four screws and
then remove the big handle.
Remove three screws and then remove
the water collecting cover. (see CJ_Multi_
D30-001(US).

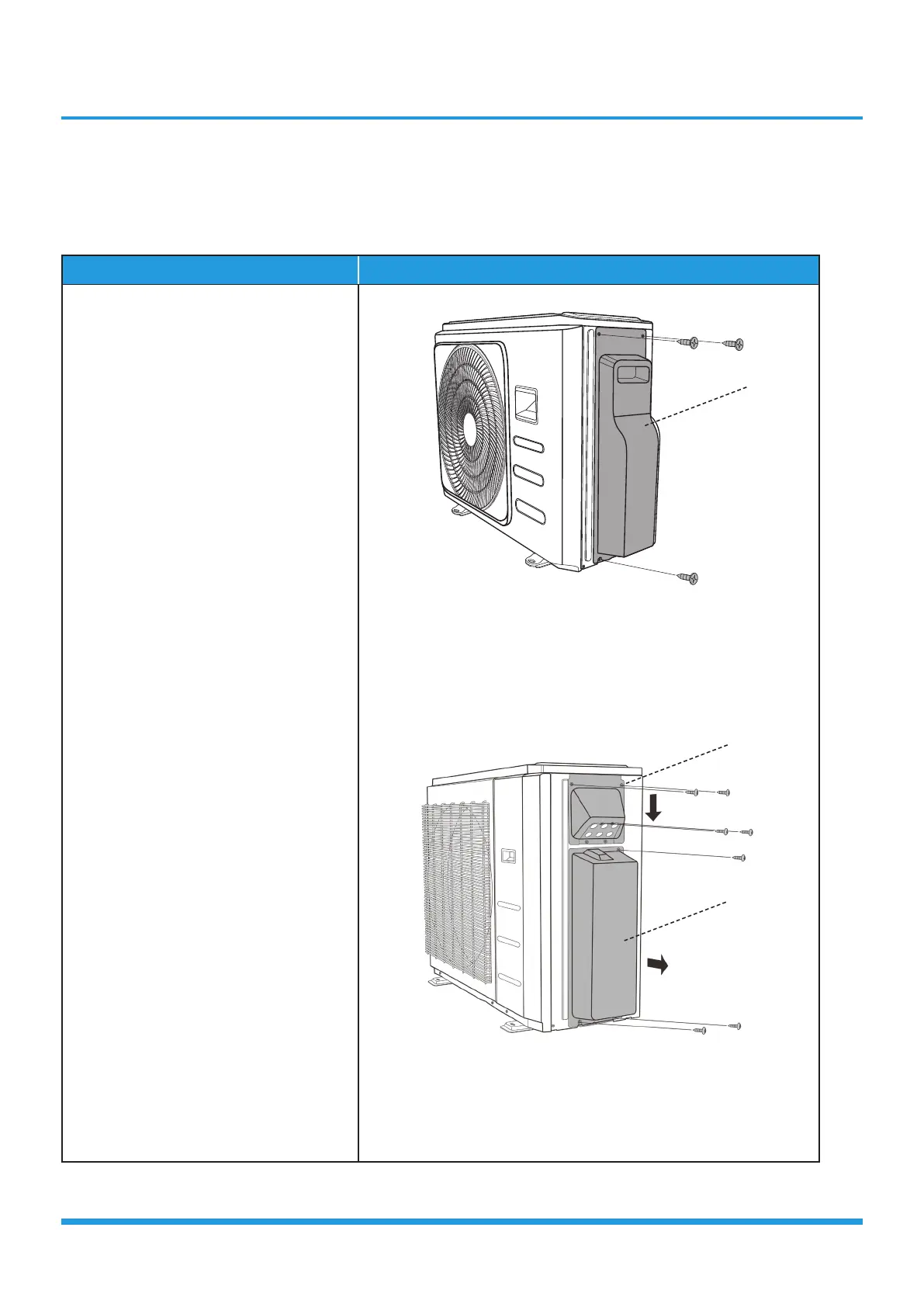

CJ_Multi_D30-001
CJ_Multi_D30-001(US)
Note: This section is for reference only. Actual unit appearance may vary.
Shield
Big Handle
Water collecting cover
