Outdoor Unit Disassembly 36
PCB board 5

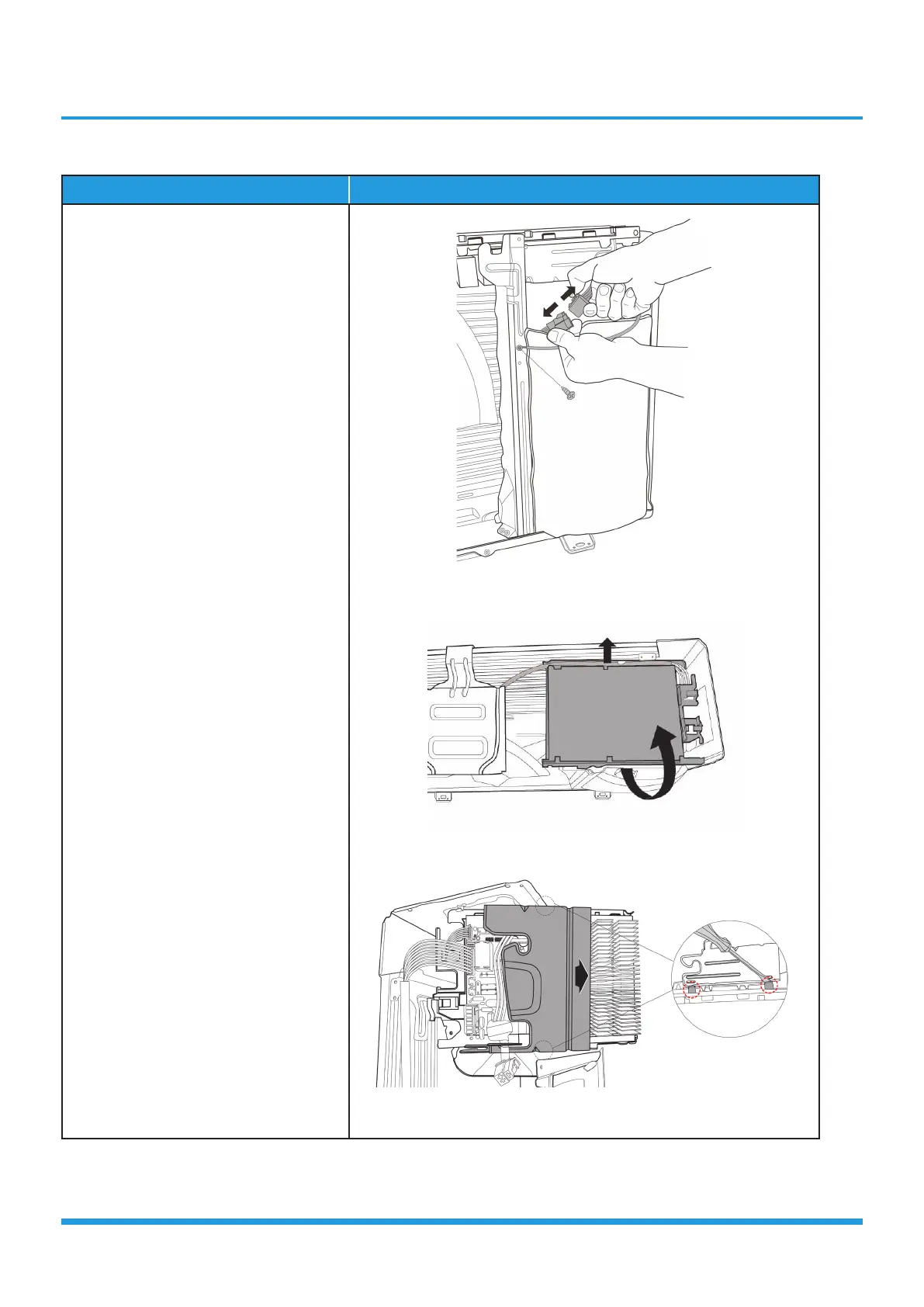

Procedure Illustration
1) Disconnect the connector for
compressor and release the ground
wire(1 screw). (see CJ_ODU_Multi_
PCB_005-1).
2) Pull out the wires from electrical
supporting plate and turn over the
electronic control assembly. (see
CJ_ODU_Multi_PCB_005-2).
3) Remove the electronic installing box
subassembly (4 hooks) (see CJ_ODU_
Multi_PCB_005-3).
CJ_ODU_Multi_PCB_005-1
CJ_ODU_Multi_PCB_005-2
CJ_ODU_Multi_PCB_005-3
Note: This section is for reference only. Actual unit appearance may vary.
