Outdoor Unit Disassembly 16
3. B30
Procedure Illustration
1) Turn off the air conditioner and the
power breaker.
2) Remove the screw of the shield and
then remove it.(1 screw) (see CJ_
Multi_B30-001).
3) Remove the screws of the top cover
and then remove the top cover (3
screws). One of the screws is located
underneath the big handle (see CJ_
B30_002).

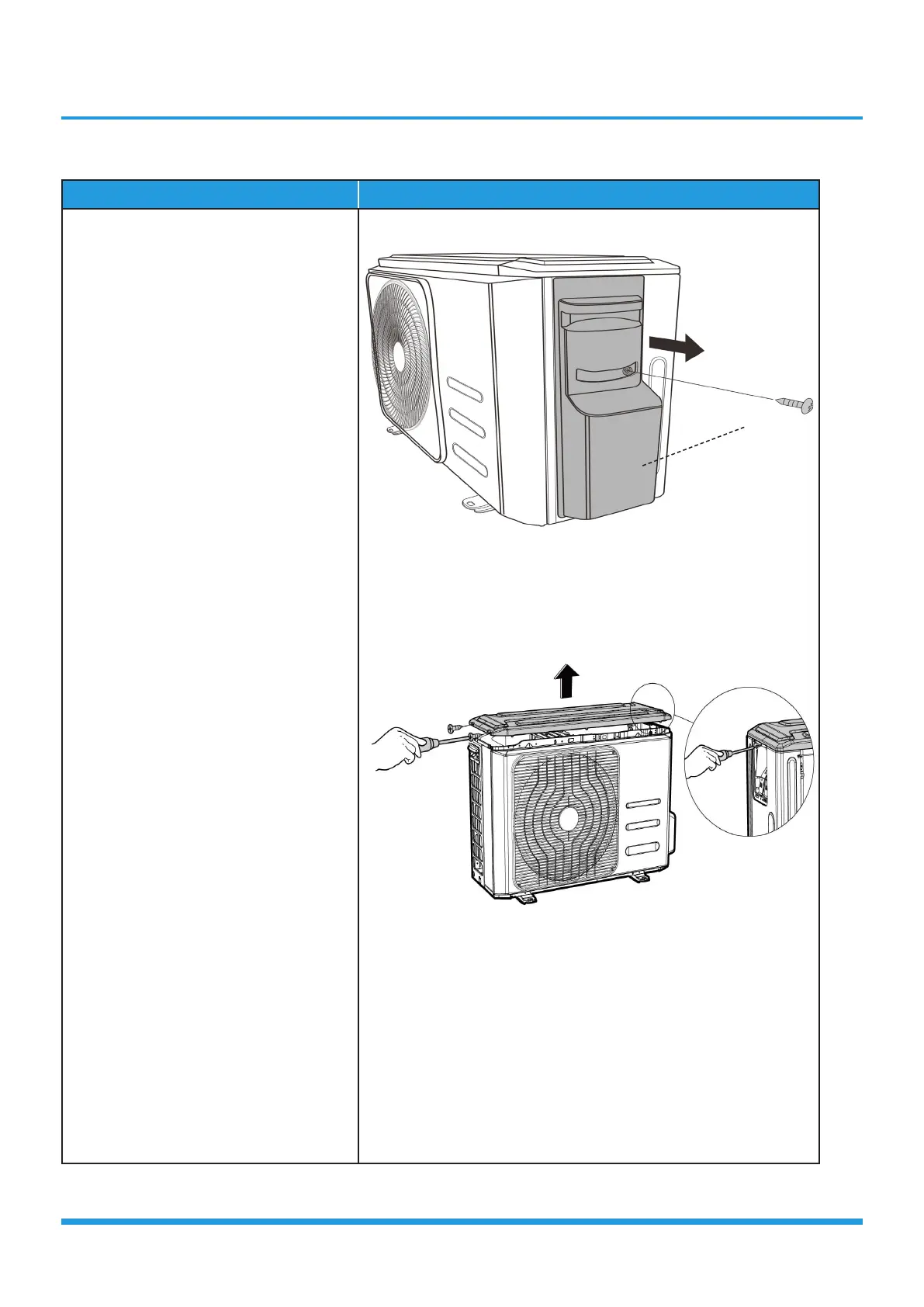

CJ_Multi_B30-001
CJ_Multi_B30-002
Note: This section is for reference only. Actual unit appearance may vary.
Shield
To Next Page
