Outdoor Unit Disassembly 27
3.2 Electrical parts
WARNING: Antistatic gloves must be worn when you disassemble the electronic box.
Note: Remove the air outlet grille(refer to 1.1 Panel Plate) before disassembling electrical parts.

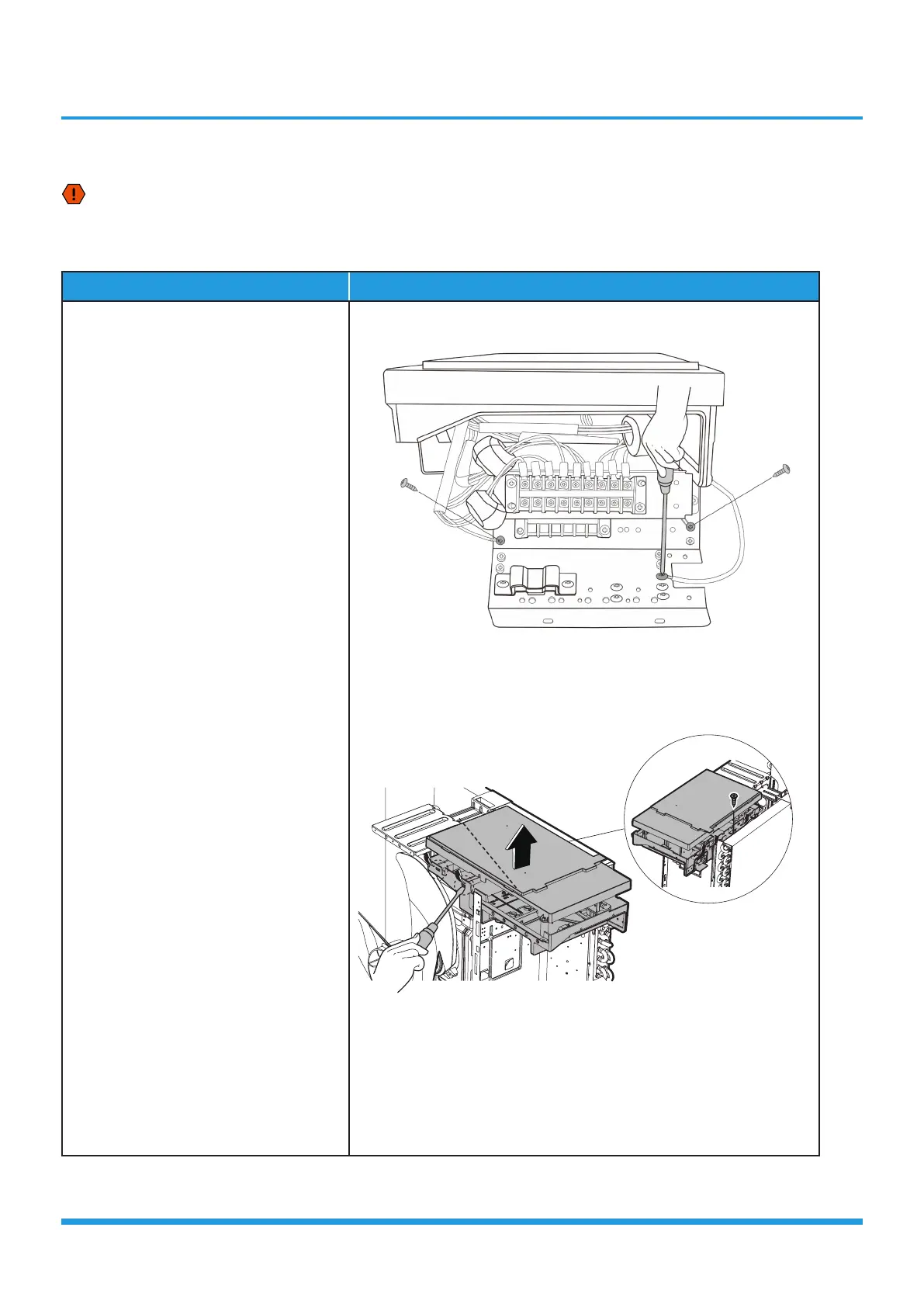

PCB Board 1
Procedure Illustration
1) Remove the screws of the ground
wirings. (3 screws) (CJ_Multi-
PCB_001-1
).
2) Unfix the hooks and screw and then
open the electronic control box cover
(5 hooks and 1 screw)(see
CJ_Multi-
PCB_001-2
).
CJ_Multi-PCB_001-1
CJ_Multi-PCB_001-2
Note: This section is for reference only. Actual unit appearance may vary.
Top Cover
To Next Page
