Outdoor Unit Disassembly 22
Procedure Illustration
1) Unfix the screws on the right side of
the right panel.(9 screws)(see CJ_
Multi_E30-005).
2) Remove the screws on the back of
the right panel and then remove the
right panel and rear net.(9 screws).(see
CJ_Multi_E30-006).

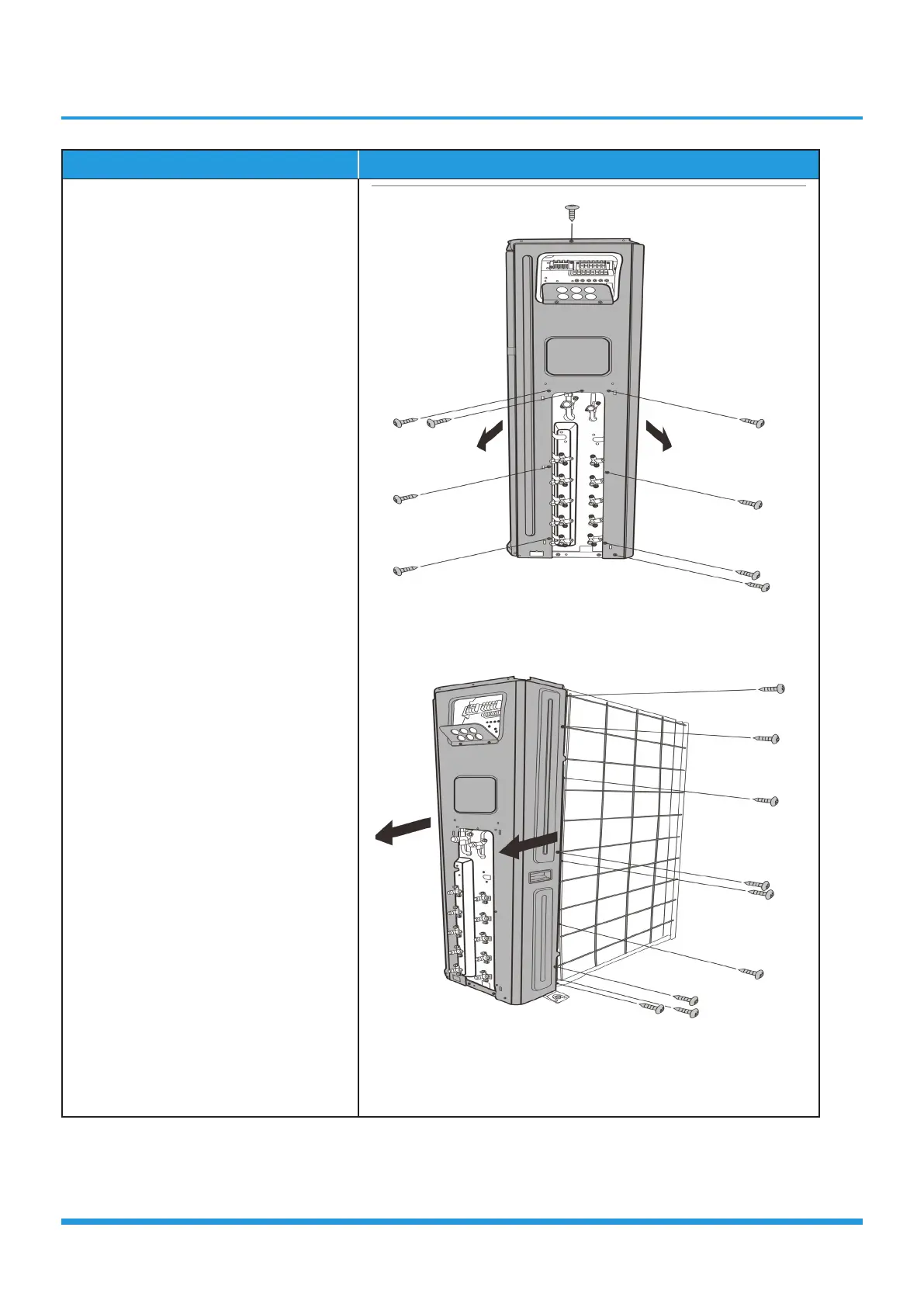

CJ_Multi_E30-005
CJ_Multi_E30-006
Note: This section is for reference only. Actual unit appearance may vary.
