Outdoor Unit Disassembly 24
Procedure Illustration

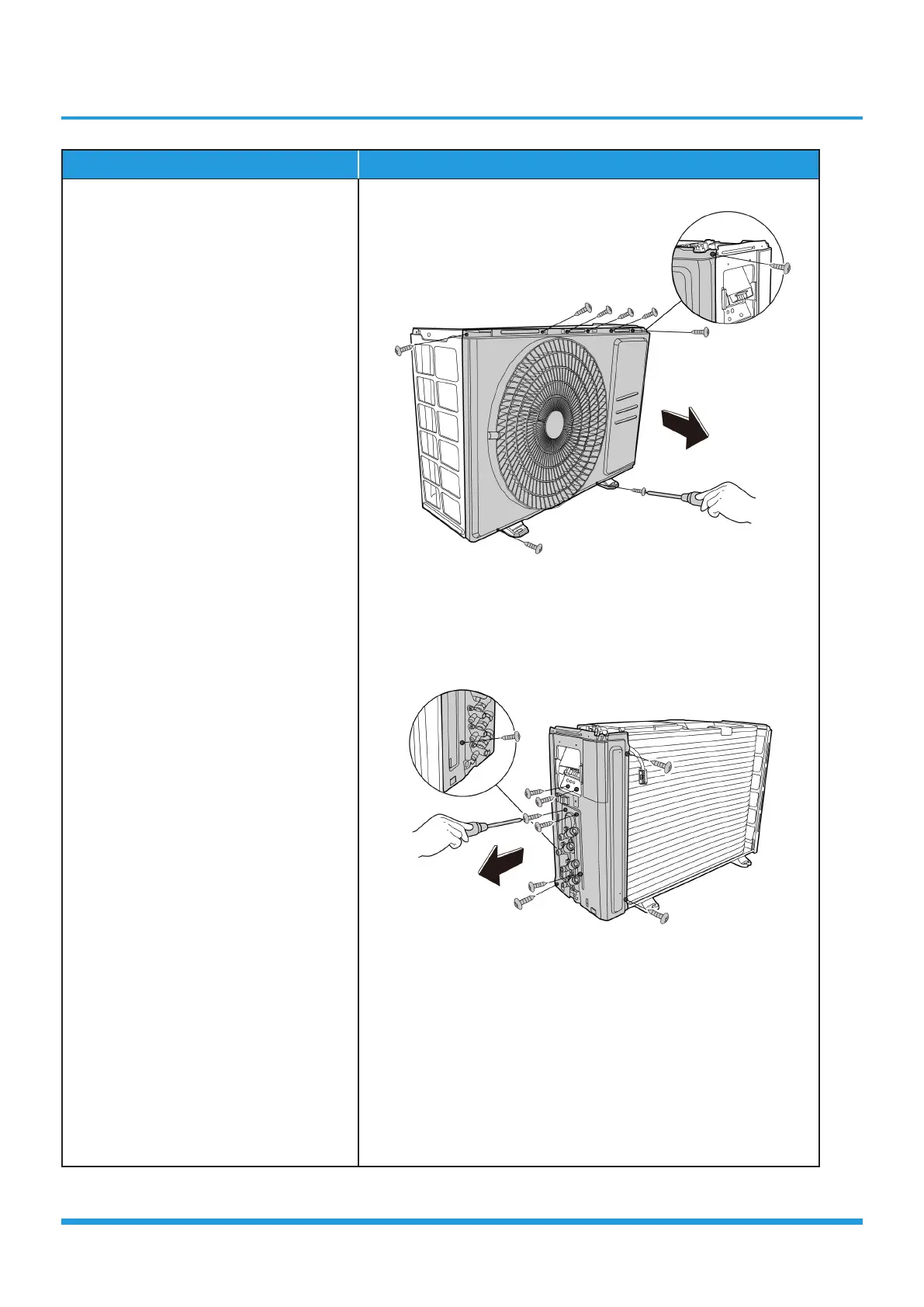

4) Remove the screws of the front panel
and then remove the front panel (8
screws) (see CJ_Multi_X330_003).
5) Remove the screws of the right panel
and then remove the right panel
(9 screws) (see CJ_Multi_X330_005).
CJ_Multi_X330_003
CJ_Multi_X330_004
Note: This section is for reference only. Actual unit appearance may vary.
