Outdoor Unit Disassembly 38
Procedure Illustration

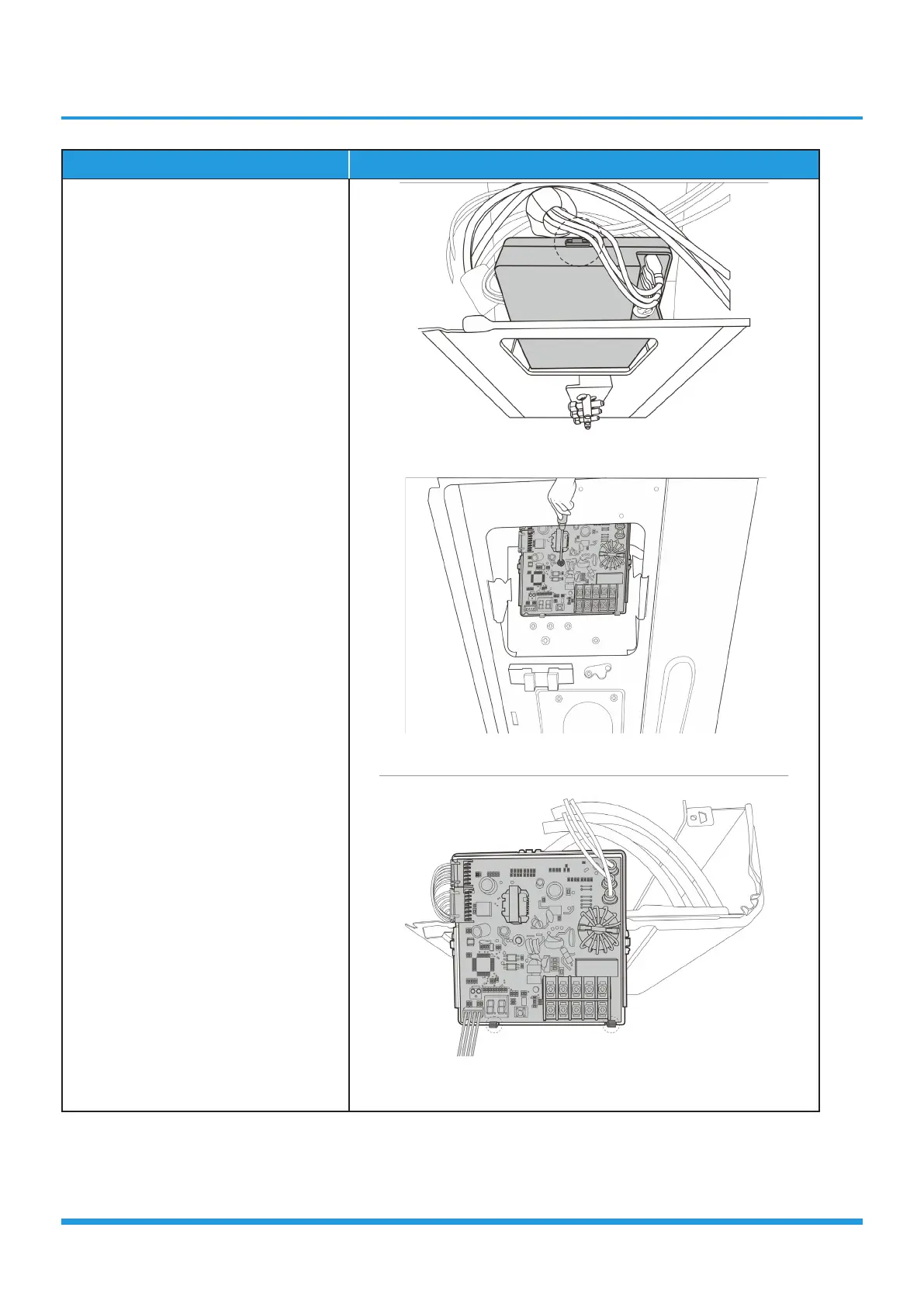

7) Unfix the hooks and then remove the
electronic installing box . (2 screws)
(see CJ_Multi_PCB_005-7）.
8) Remove one screw of module board.
(see CJ_Multi_PCB_005-8).
9) Disconnect the connectors of the
module board. (see CJ_Multi_
PCB_005-9).
CJ_Multi-PCB_005-7
CJ_Multi-PCB_005-8
CJ_Multi-PCB_005-9
Note: This section is for reference only. Actual unit appearance may vary.
