MrCool MDUI18060 - Single-Phase Unit Electrical Wiring

Page 21 mrcool.com
Screw with
Special Fastener
Round
Terminal
Wire
Terminal
Board

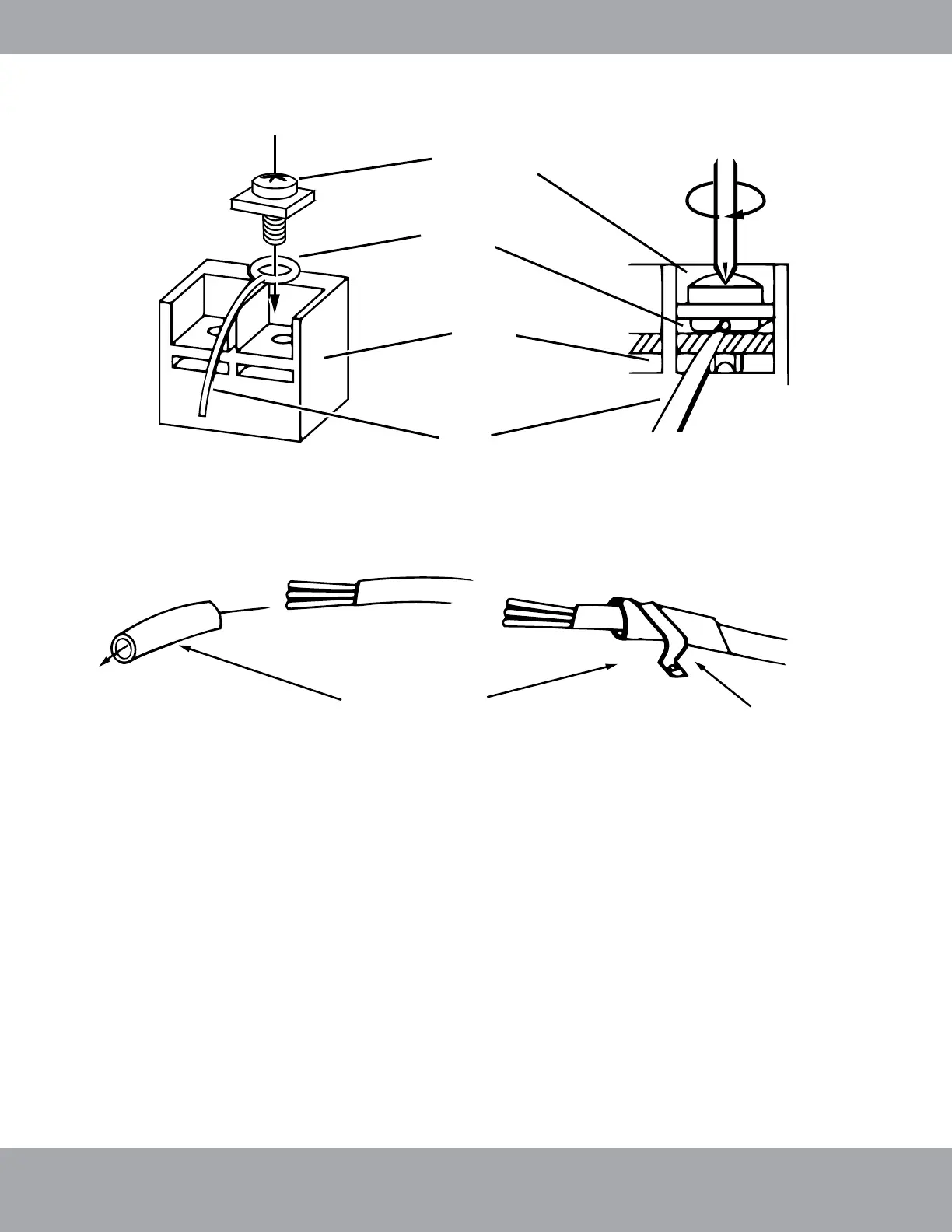

For all terminal wiring (Refer to Fig. 2.13 on the next page):
Lead the thermostat wire and power cords through the insulation tube. Then secure
the wires with wire clamps (as shown in Fig. 2.12).
Fig. 2.12
Fig. 2.11
Cord Clamp
Insulation Tube
Unit Installation
