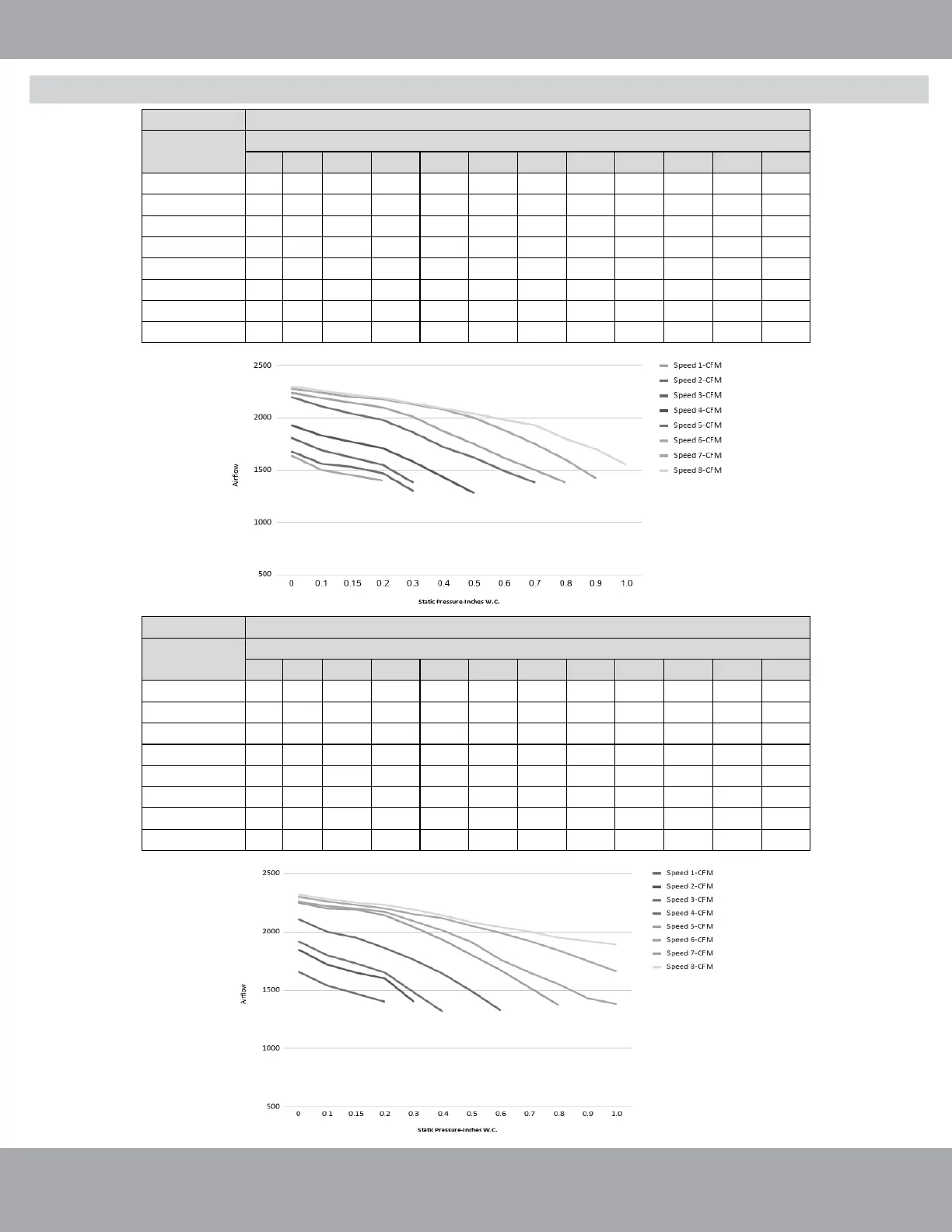

Air Flow Volume Under Different ESP & Fan Speed: MDUI18048E/MDUI18060E (4-5 Ton)
Speed 1
Speed 2
Speed 3
Speed 4
Speed 5
Speed 6
Speed 7
Speed 8
Speed 1
Speed 2
Speed 3
Speed 4
Speed 5
Speed 6
Speed 7
Speed 8
Model
MDUI18048E
Level
Static pressure(Inches W.C.)
0
0.1
0.15
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
Speed 1(CFM)
1640
1500
1450
1350
-
-
-
-
-
-
-
-
Speed 2(CFM)
1680
1560
1500
1380
1300
-
-
-
-
-
-
-
Speed 3(CFM)
1810
1690
1620
1550
1380
-
-
-
-
-
-
-
Speed 4(CFM)
1930
1830
1770
1710
1580
1430
1280
-
-
-
-
-
Speed 5(CFM)
2200
2110
2040
1980
1860
1720
1620
1490
1380
-
-
-
Speed 6(CFM)
2240
2190
2145
2100
2010
1870
1750
1615
1500
1380
-
-
Speed 7(CFM)
2280
2240
2200
2180
2130
2080
2000
1880
1750
1600
1420
Speed 8(CFM)
2300
2260
2220
2190
2140
2090
2040
1980
1930
1800
1700
1550
Model
MDUI18060E
Level
Static pressure(Inches W.C.)
0
0.1
0.15
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
Speed 1(CFM)
1660
1540
1470
1400
-
-
-
-
-
-
-
-
Speed 2(CFM)
1850
1720
1650
1600
1400
-
-
-
-
-
-
-
Speed 3(CFM)
1920
1800
1730
1650
1480
1315
-
-
-
-
-
-
Speed 4(CFM)
2110
2000
1950
1860
1760
1640
1490
1325
-
-
-
-
Speed 5(CFM)
2250
2200
2190
2140
2040
1930
1800
1670
1520
1370
-
-
Speed 6(CFM)
2260
2220
2200
2170
2090
2010
1910
1760
1650
1550
1430
1380
Speed 7(CFM)
2300
2260
2230
2200
2150
2115
2050
1990
1920
1840
1750
1660
Speed 8(CFM)
2320
2280
2250
2230
2190
2140
2080
2040
2000
1950
1920
1890
