6

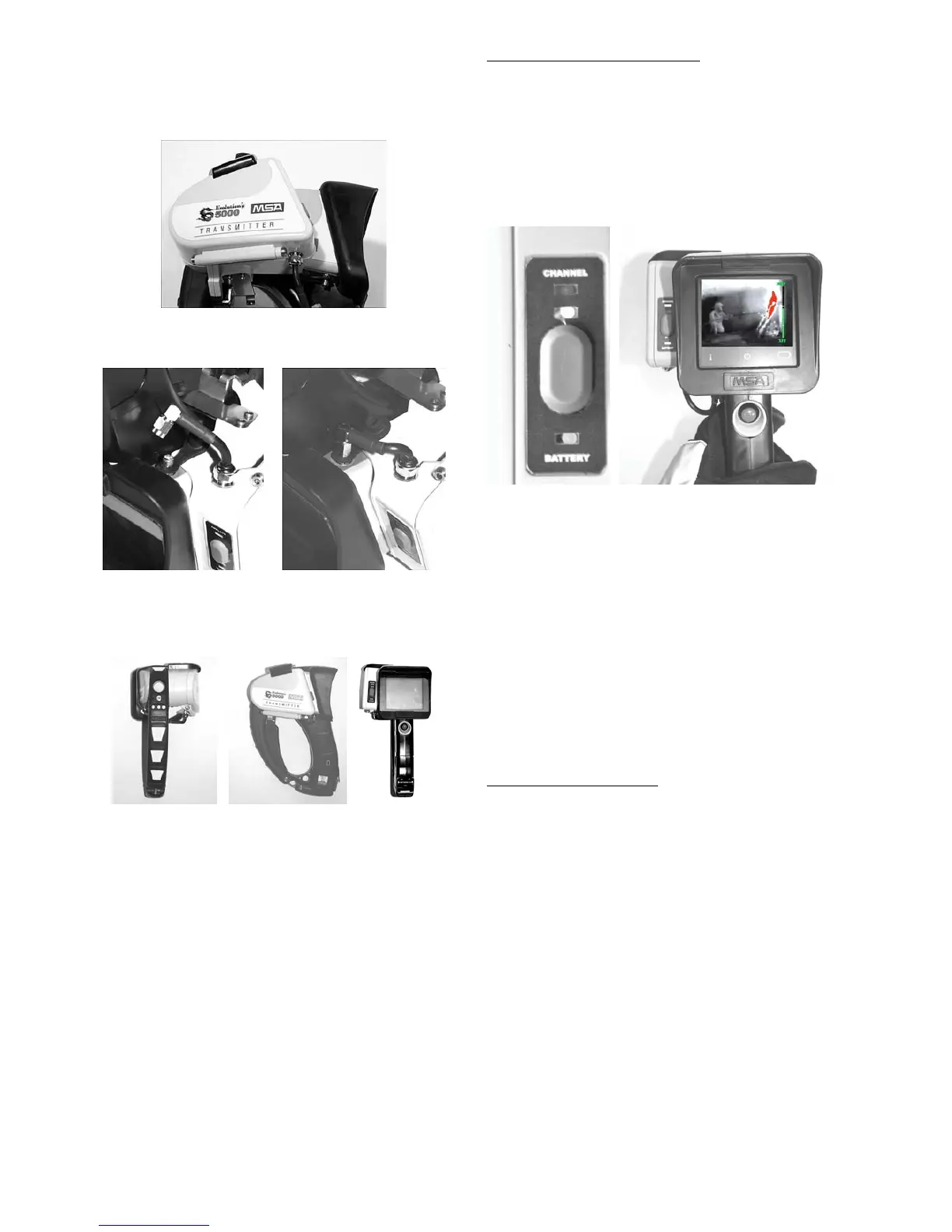

q Place the transmitter housing onto the
EVOLUTION

5000 TIC and connect the
Transmitter via cable to the SMA video outlet of
the EVOLUTION

5000 TIC
r The system is now ready for operation
Turning the system ON and OFF
Once the Transmitter is properly mounted to the TIC
turn on the EVOLUTION

5000 TIC [see instructions
for use of the TIC]. The Transmitter will switch on
automatically. The system will begin to operate on
channel one [1]. The system shows the ON mode with
a lit battery and channel LED.
Verify that the Transmitter is functioning – the
thermal image must be shown on the display of the
receiver station or monitor.
• The Transmitter is now ready for use
NOTE: If the EVOLUTION

5000 TIC is switched to
standby mode, the Transmitter will
continue to transmit a video signal.
Turning the camera completely OFF will
automatically switch OFF the Transmitter.
Channel Selection Button
The green channel selection button offers the ability
to change the transmitting frequency. Pushing the
button for about one second will change from
channel 1 to channel 2 or vice-versa.
It is also possible to switch OFF the Transmitter
seperately. To turn the Transmitter OFF, press and
hold the channel selection button [green] in for four
seconds.
