4 INSTALLATION INSTRUCTIONS
AUTOTRONIC CONTROLS CORPORATION • 1490 HENRY BRENNAN DR., EL PASO, TEXAS 79936 • (915) 857-5200 • FAX (915) 857-3344

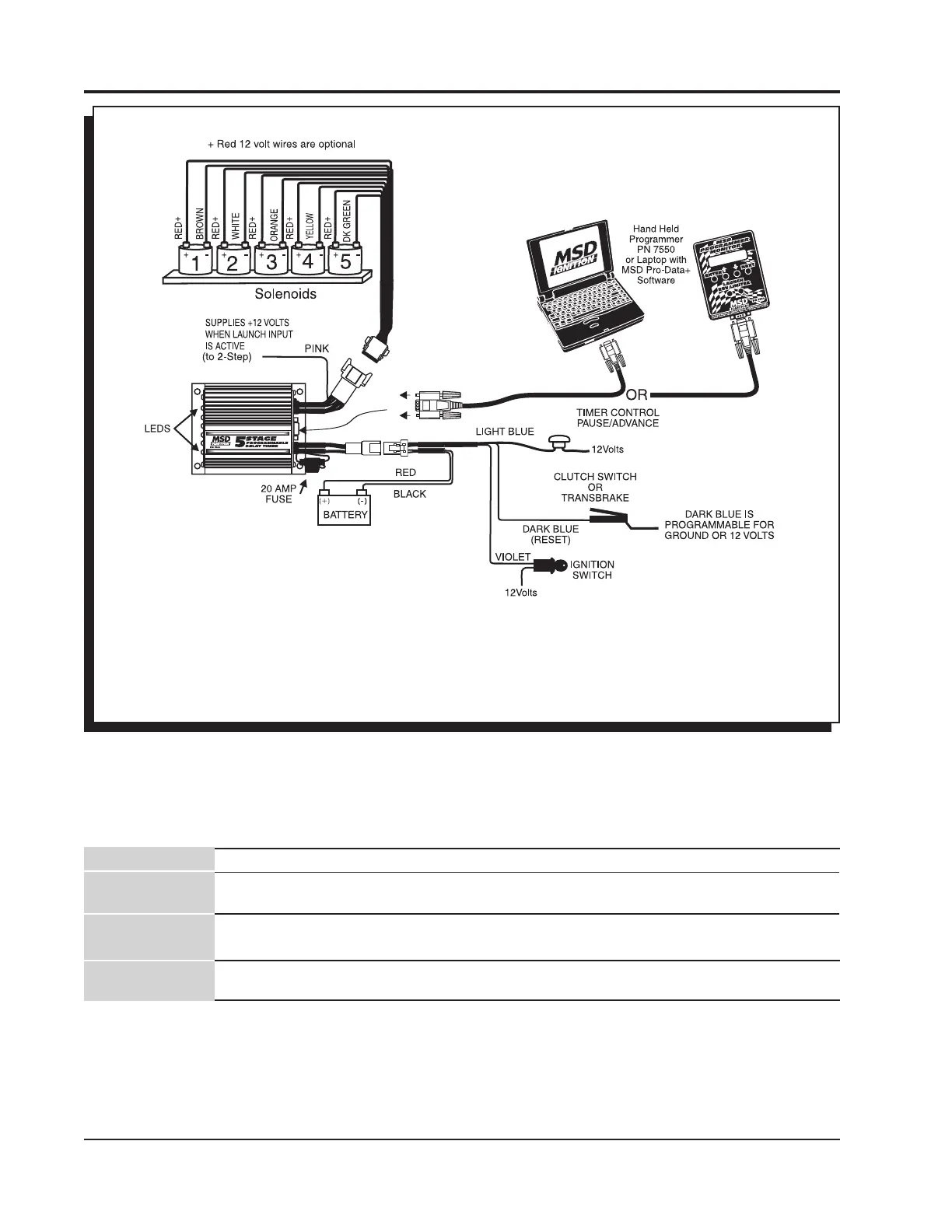

Figure 4 Wiring the Delay Controller.
Note: NHRA rules only allow one wire to be connected to the Trans Brake. Connect the
MSD Dark Blue (reset) to the Trans Brake Switch. The Pink MSD wire will provide
+12 volts (up to 300ma load) when the Launch Input is activated.
PROGRAMMABLE FEATURES:
LaunchIn
Delay Output
State
Sequence
Delay Time
Timer Control
Programmable for active input at +12 volts or ground
Programmable output mode of turn-on or turn off
Programmed delay output time of .001 to 5.000 seconds for each of 5 delays
sequences
Programmable to either Pause or Advance the current time Delay sequence
when the Time Control input wire is at +12 volts
