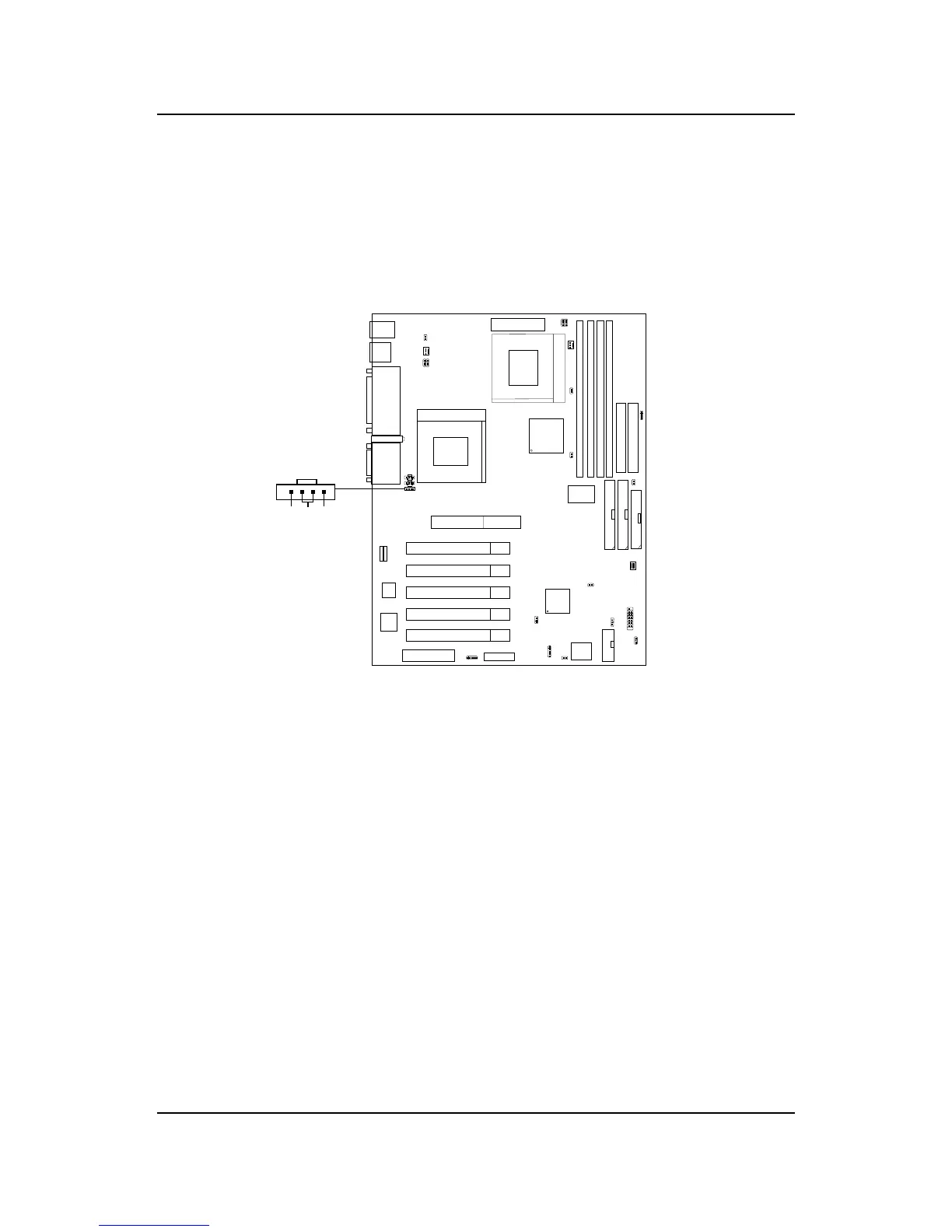

2.25 Modem-In: JPHONE
The connector is for Modem with internal voice connector.
Mono_Out is connected to the Modem Speaker Out connector.
Phone_In is connected to the Modem Microphone In connector.
JPHONE
Mono_Out
GND
Phone_In
