36
Overview of Components

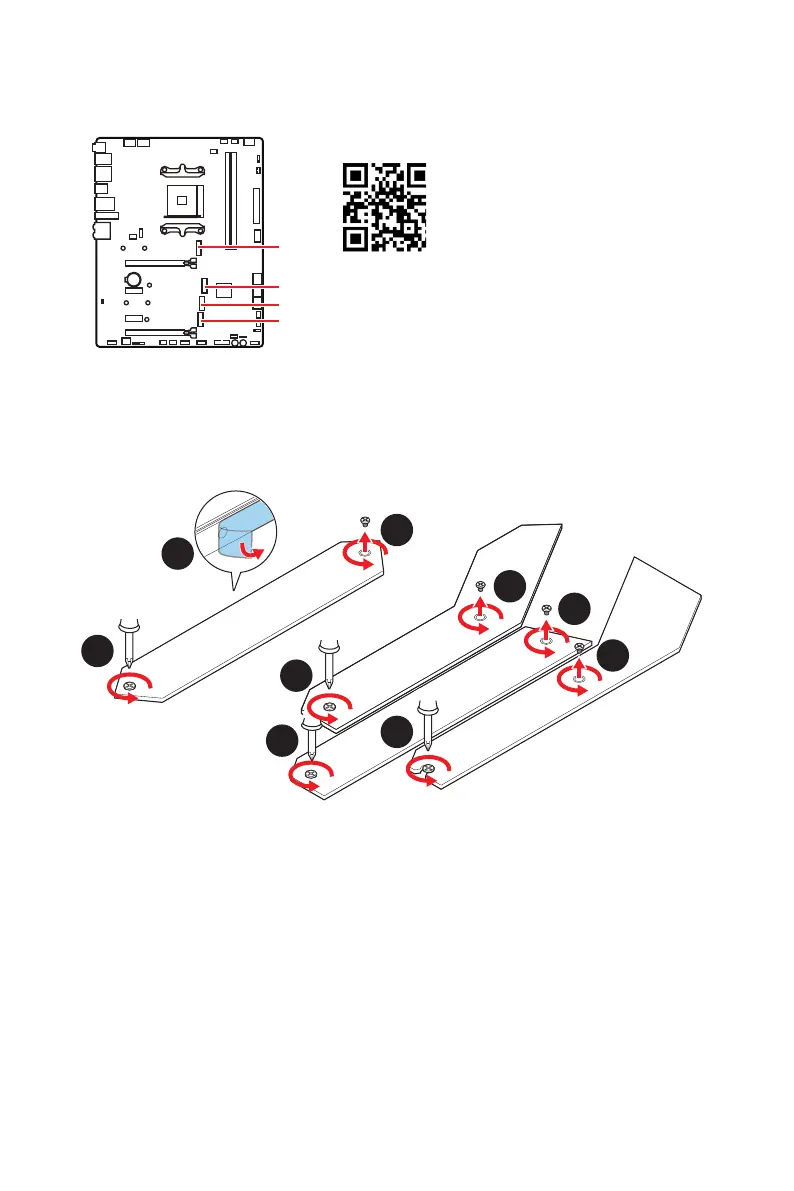

M2_1~4: M.2 Slots (Key M)
M2_1
M2_2
M2_3
M2_4
⚽
Video Demonstration
Watch the video to learn how to
Install M.2 module.
http://youtu.be/JCTFABytrYA
Installing M.2 module
1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
2
1
1
1
1
1
1
1
3. M2_1 and M2_3 slots are equipped with one standoff. To avoid damage to the M.2
SSD. If you want to install 22110 M.2 SSD, please remove the standoff.
4. There are two thermal pads on each M.2 slot base plate. The thermal pad-2 is
fixed on the M.2 Plate and should not be removed.
For double-side M.2 SSD, completely remove the thermal pad-1 and protection
film.
For single-side M.2 SSD, remove the protection film from pad-1.
1
⚠
Important
∙
Pictures shown in this section are for illustration purpose only and may differ from
the actual plates and thermal pads.
∙
If your M.2 SSD equips its own heathink, please remove the thermal pad-1 and
thermal pad-2, and install the M.2 SSD into the M.2 slot.
