6
Quick Start
HDD LED
RESET SW

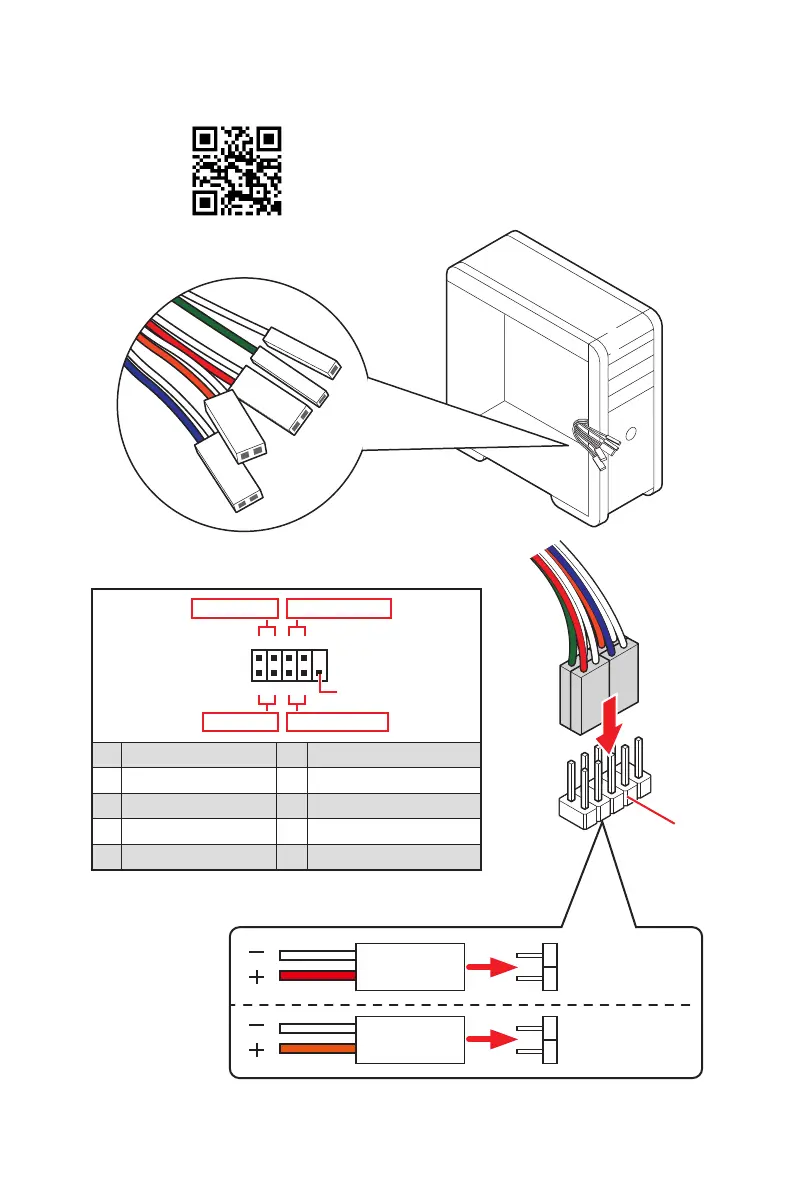

Connec
ting the Front Panel Header
http://youtu.be/DPELIdVNZUI
JFP1
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2
10
9
+
+
+
-
-
-
-
+
Power LED
HDD LED
Reset Switch
Reserved
Power Switch
JFP1
1
HDD LED +
2
Power LED +
3
HDD LED -
4
Power LED -
5
Reset Switch
6
Power Switch
7
Reset Switch
8
Power Switch
9
Reserved
10
No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
⚽
5
7
Table of Contents
Quick Start
1
Preparing Tools and Components
1
Safety Information
2
Installing a Processor
3
Installing DDR4 Memory
5
Connecting the Front Panel Header
6
Installing the Motherboard
7
Connecting the Power Connectors
8
Installing SATA Drives
9
Installing a Graphics Card
10
Connecting Peripheral Devices
11
Power on
12
Table of Contents
13
Specifications
15
Package Contents
22
Block Diagram
23
Rear I/O Panel
24
LAN Port LED Status Table
24
Audio Ports Configuration
24
Realtek Audio Console
25
Installing Antennas
27
Overview of Components
28
Processor Socket
30
DIMM Slots
31
PCI_E1~4: Pcie Expansion Slots
32
M2_1~4: M.2 Slots (Key M)
36
SATA1~6: SATA 6Gb/S Connectors
38
JFP1, JFP2: Front Panel Connectors
39
JAUD1: Front Audio Connector
39
CPU_PWR1~2, ATX_PWR1, PCIE_PWR1: Power Connectors
40
JUSB3~4: USB 2.0 Connectors
41
JUSB1: USB 3.2 Gen 2 10Gbps Type-C Connector
41
JUSB2: USB 3.2 Gen 1 5Gbps Connector
42
JTPM1: TPM Module Connector
42
CPU_FAN1, PUMP_FAN1, SYS_FAN1~6: Fan Connectors
43
JCI1: Chassis Intrusion Connector
44
JBAT1: Clear CMOS (Reset BIOS) Jumper
45
POWER1, RESET1: Power Button, Reset Button
45
JRGB1: RGB LED Connector
46
JRAINBOW1~2: Addressable RGB LED Connectors
47
JCORSAIR1: CORSAIR Connector
48
Onboard Leds
49
EZ Debug LED
49
LED_SW1: EZ LED Control
49
Debug Code LED
49
Hexadecimal Character Table
50
Boot Phases
50
Debug Code LED Table
50
ACPI States Codes
54
Installing OS, Drivers & Utilities
55
Installing Windows® 10
55
Installing Drivers
55
Installing Utilities
55
Uefi Bios
56
BIOS Setup
57
Entering BIOS Setup
57
Resetting BIOS
58
Updating BIOS
58
EZ Mode
60
Advanced Mode
63
SETTINGS Menu
64
OC Menu
66
M-FLASH Menu
69
OC PROFILE Menu
70
HARDWARE MONITOR Menu
71
AMD RAID Configuration
73
Enabling Raidxpert2 Configuration Utility
73
Initializing Disks
74
Creating Arrays
75
Deleting Arrays
76
Installing RAID Driver
77
Troubleshooting
78
