Onboard LEDs

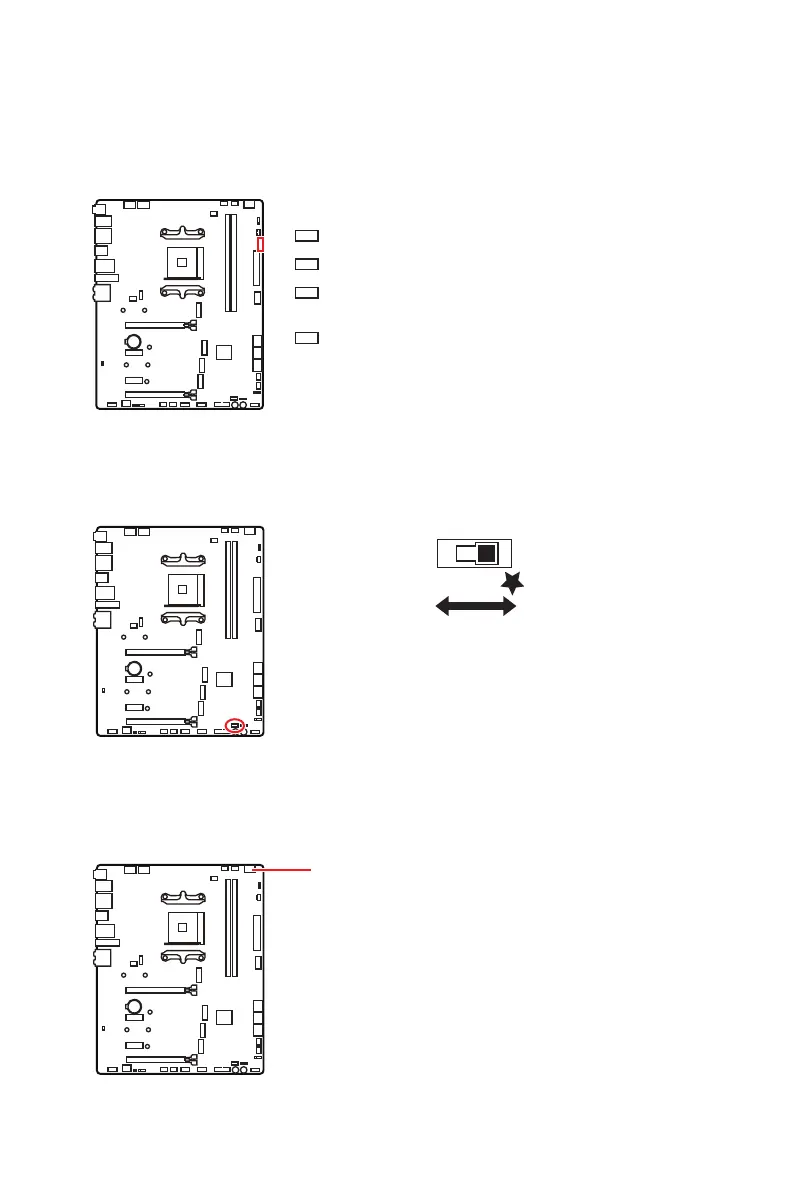

EZ Debug LED
These LEDs indicate the debug status of the motherboard.
Onboard LEDs
CPU - indicates CPU is not detected or fail.
DRAM - indicates DRAM is not detected or fail.
VGA - indicates GPU/ PCIE/ M.2 device is not detected
or fail.
BOOT - indicates the booting device is not detected
or fail.
LED_SW1: EZ LED Control
This switch is used to switch on/ off all the LEDs of motherboard.
LED_OFF
LED_ON
(Default)
Debug Code LED
The Debug Code LED displays progress and error codes during and after POST. Refer
to the Debug Code LED table for details.
Debug Code LED
To Next Page
