Overview of Components

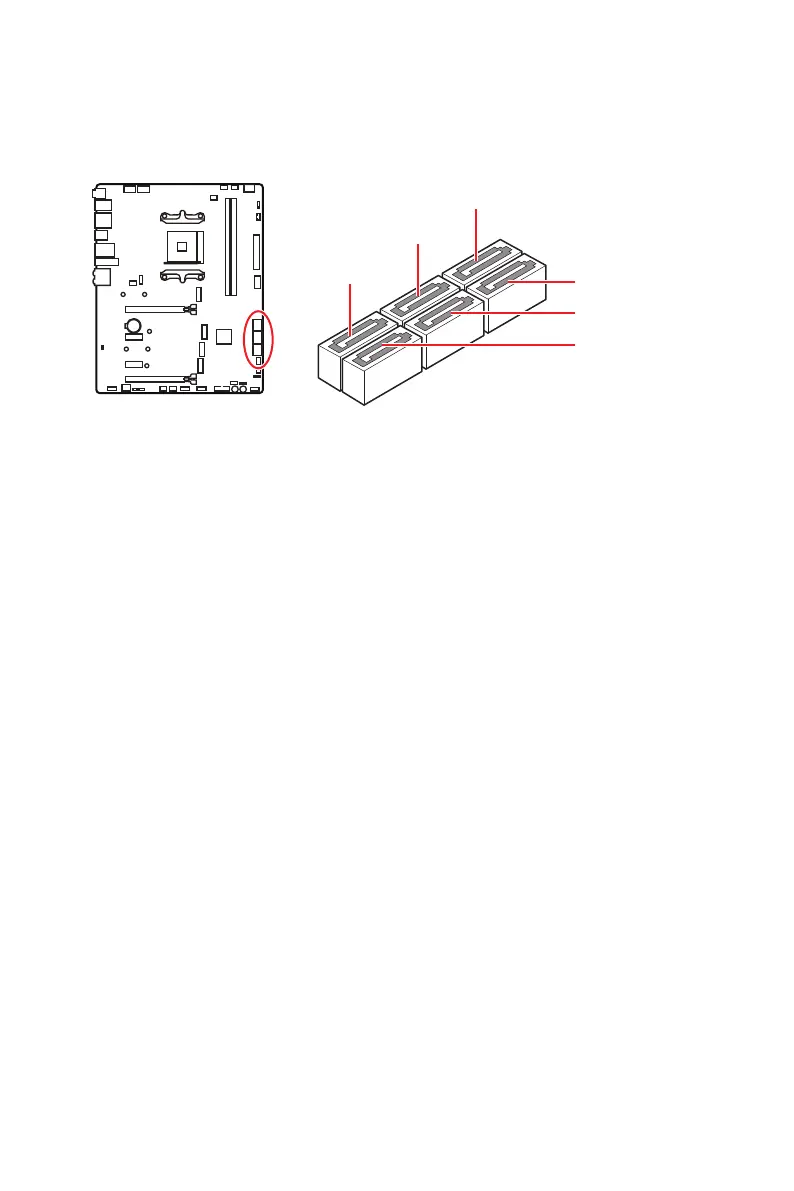

SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
⚠
Important
∙
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
∙
SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
∙
The SATA5 port will be unavailable, when installing M.2 SATA SSD into M2_3.
∙
The SATA5 and SATA6 ports will be unavailable when installing M.2 PCIe SSD into
M2_3.
SATA2
SATA4
SATA6
SATA5
SATA1
SATA3
To Next Page
