MSI 800 - Front Panel Connector: JFP1 & JFP2; CD-In Connector: J1

2-14
CD-in Connector: J1
The connector is for CD-ROM audio connector.
PIN SIGNAL DESCRIPTION
1 HD_LED_P Hard disk LED pull-up
2 FP PWR/SLP MSG LED pull-up
3 HD_LED_N Hard disk active LED
4 FP PWR/SLP MSG LED pull-up
5 RST_SW_N Reset Switch low reference pull-down to GND
6 PWR_SW_P Power Switch high reference pull-up
7 RST_SW_P Reset Switch high reference pull-up
8 PWR_SW_N Power Switch low reference pull-down to GND
9 RSVD_DNU Reserved. Do not use.
JFP1 Pin Definition

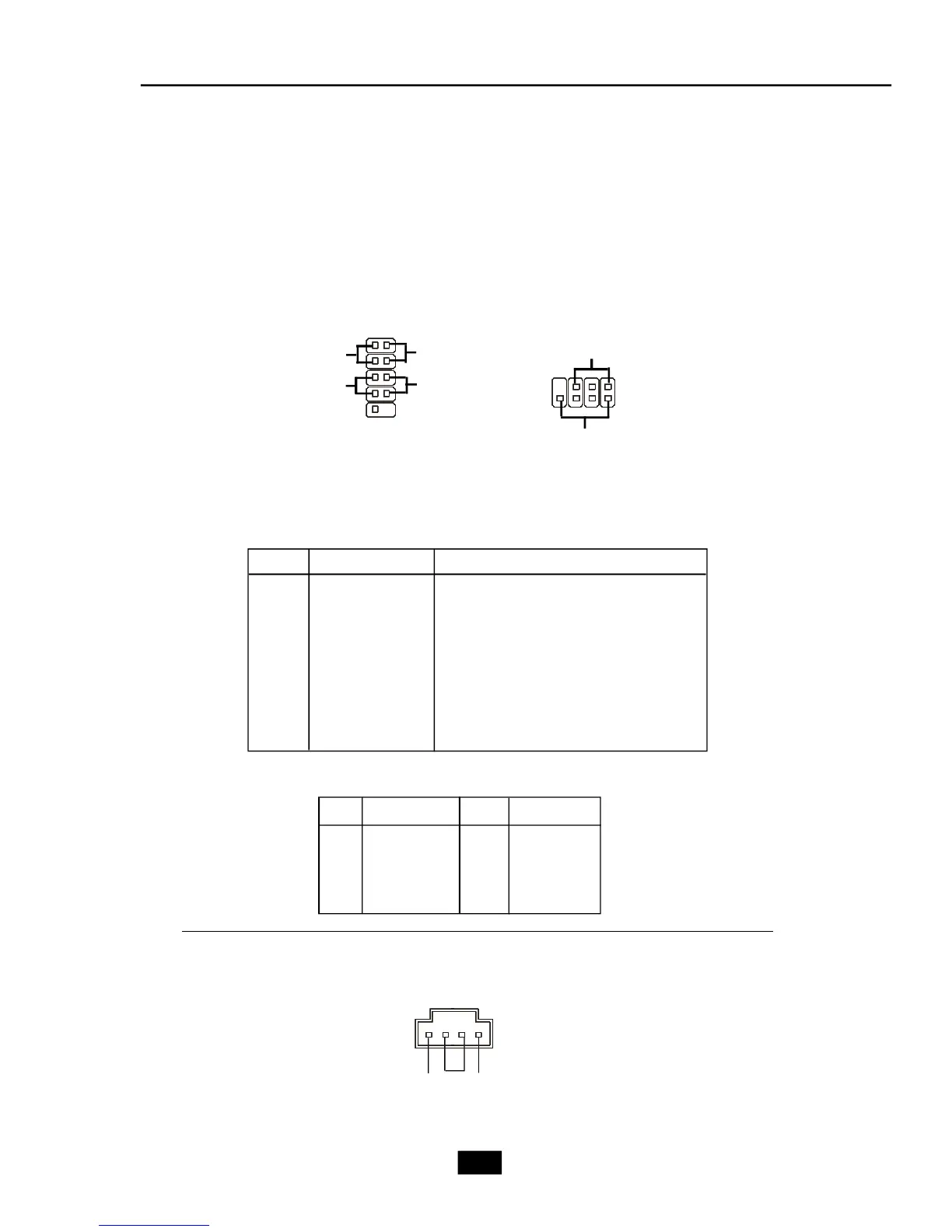

Front Panel Connectors: JFP1 & JFP2
The mainboard provides two front panel connectors for you to connect
to the front panel switches and LEDs. JFP1 & JFP2 are compliant with Intel
®
Front
Panel I/O Connectivity Design Guide.
This barebone uses JFP1 only.
GNDR L
J1
PIN SIGNAL PIN SIGNAL
1 GND 2 SPK-
3 SLED 4 BUZ+
5 PLED 6 BUZ-
7 NC 8 SPK+
JFP2 Pin Definition
7
8
Power
LED
Speaker
1
2
JFP2
1
2
9
10
JFP1
HDD
LED
Reset
Switch
Power
LED
Power
Switch
