MS-6728 ATX Mainboard

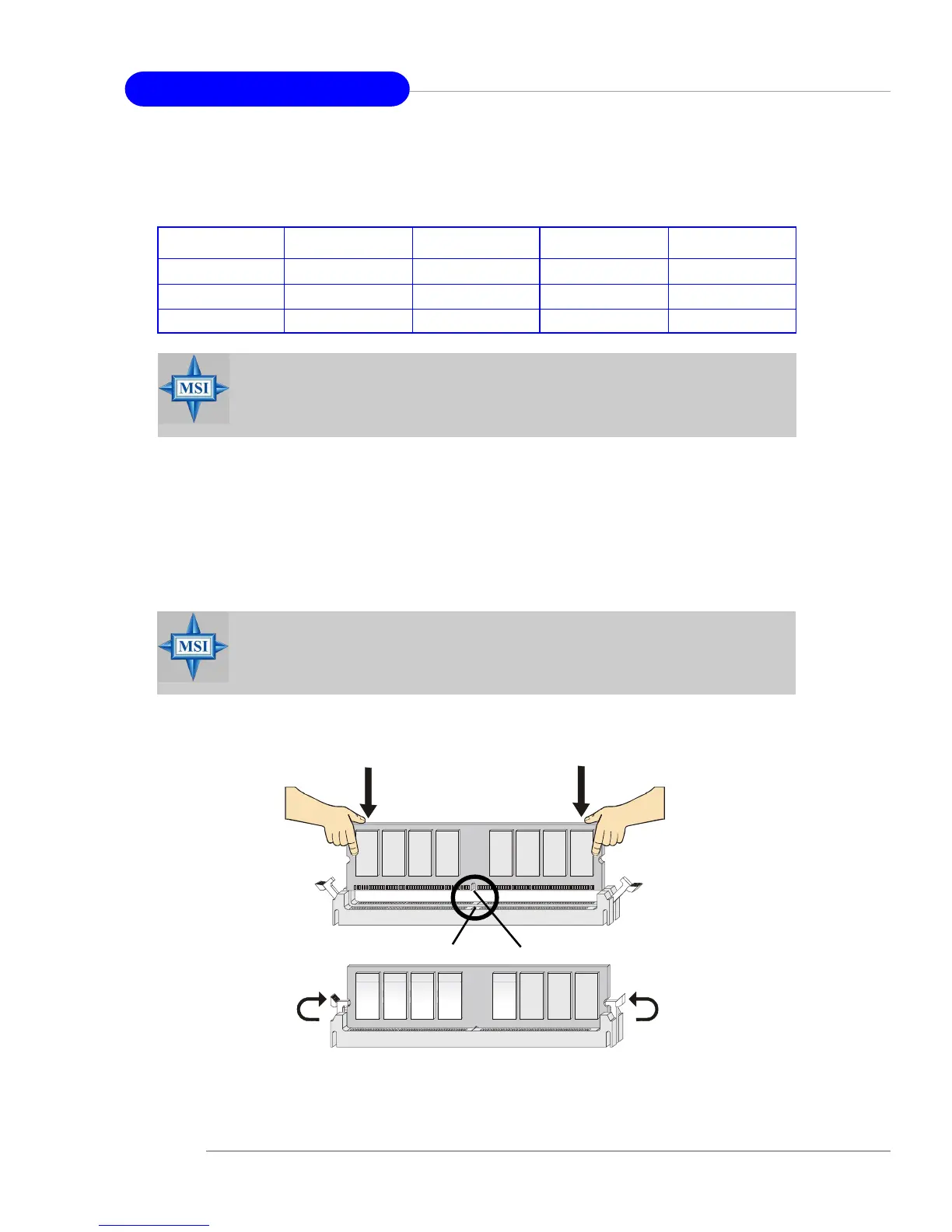

Installing DDR Modules

1. The DDR DIMM has only one notch on the center of module. The module will only

fit in the right orientation.

2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in until the

golden finger on the memory module is deeply inserted in the socket.

3. The plastic clip at each side of the DIMM slot will automatically close.

Volt

Notch

MSI Reminds You...

Dual-channel DDR works ONLY in the 3 combinations listed in the

table above.

DIMM1 (Ch A) DIMM2 (Ch A) DIMM3 (Ch B) DIMM4 (Ch B) System Density

128MB~1GB 128MB~1GB 256MB~2GB

128MB~1GB 128MB~1GB 128MB~1GB 128MB~1GB 512MB~4GB

Please refer to the following table for detailed dual-channel DDR. Other com-

bination not listed below will function as single-channel DDR.

MSI Reminds You...

You can barely see the golden finger if the module is properly inserted

in the socket.
