Hardware Setup

The mainboard provides the following jumpers for you to set the computer’s

function. This section will explain how to change your mainboard’s function through

the use of jumpers.

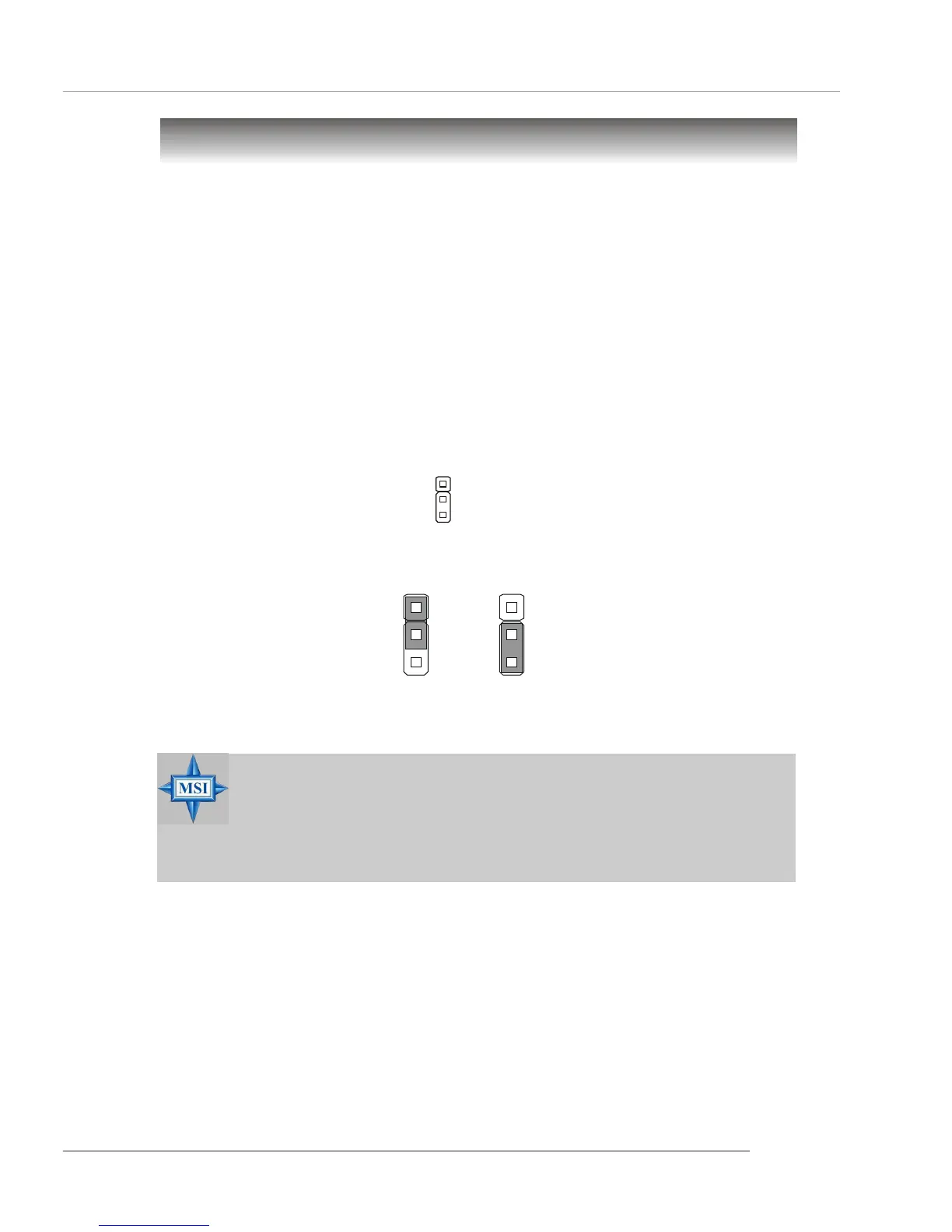

Clear CMOS Jumper: JBAT1

There is a CMOS RAM on board that has a power supply from external battery

to keep the data of system configuration. With the CMOS RAM, the system can

automatically boot OS every time it is turned on. If you want to clear the system

configuration, use the JBAT1 (Clear CMOS Jumper ) to clear data. Follow the instruc-

tions below to clear the data:

Jumpers

MSI Reminds You...

You can clear CMOS by shorting 2-3 pin while the system is off.

Then return to 1-2 pin position. Avoid clearing the CMOS while the

system is on; it will damage the mainboard.

JBAT1

Clear Data

Keep Data
