E-2-10
MS-6728 ATX Mainboard

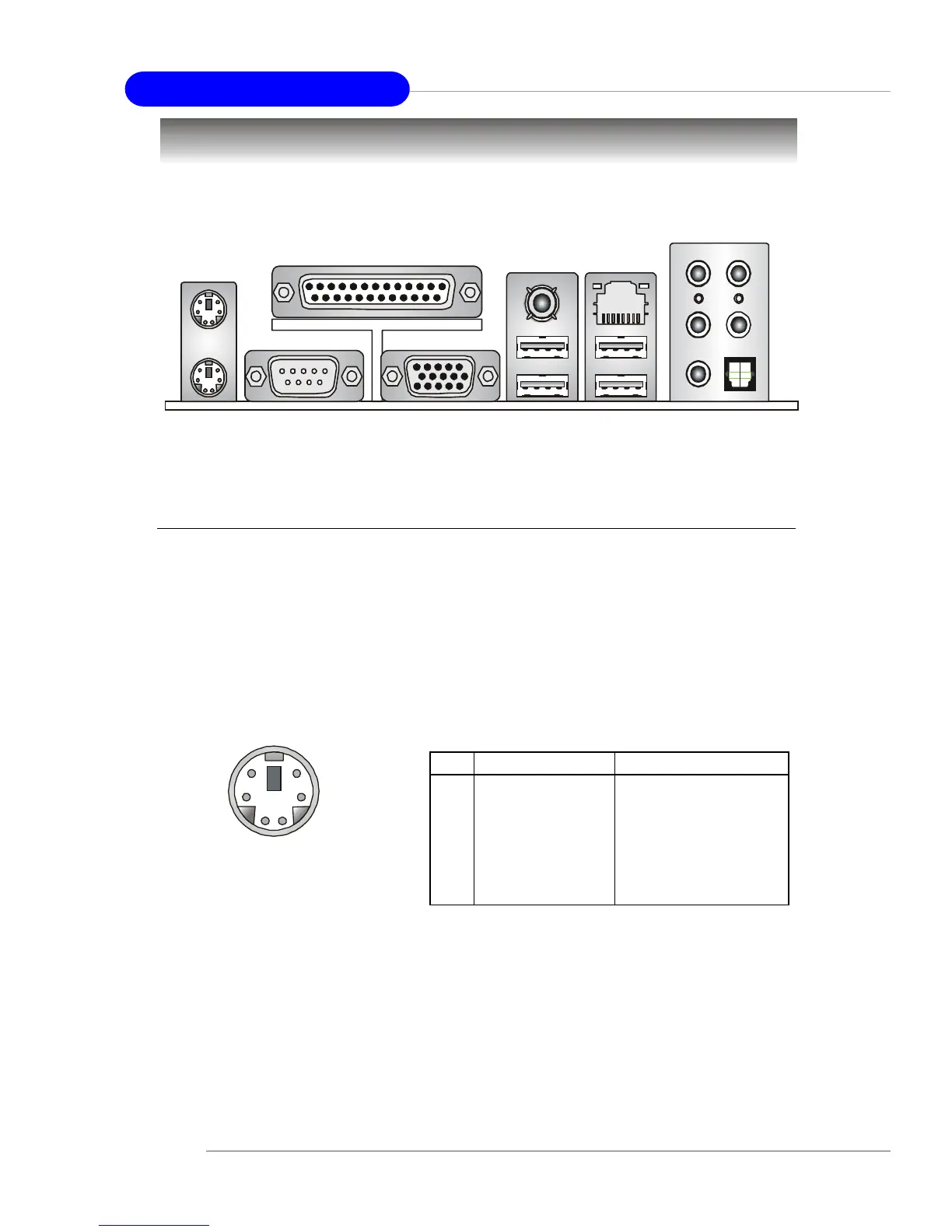

The back panel provides the following connectors:
Back Panel
Mouse/Keyboard Connector
The mainboard provides a standard PS/2
®
mouse/keyboard mini DIN connec-
tor for attaching a PS/2
®
mouse/keyboard. You can plug a PS/2
®
mouse/keyboard
directly into this connector. The connector location and pin assignments are as
follows:
PS/2 Mouse / Keyboard
(6-pin Female)
2
1
3
4
5
6
PIN SIGNAL DESCRIPTION
1 Mouse/Keyboard Data Mouse/Keyboard data
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse/Keyboard Clock Mouse/Keyboard clock
6 NC No connection
Pin Definition
Keyboard
COM A
USB Ports
Mic
L-Out
L-In
Mouse
Parallel
LAN
VGA port
(Optional)
S/PDIF
RS-Out
SPDIF Out
CS-Out

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MSI 865PE Neo3-F and is the answer not in the manual?

MSI 865PE Neo3-F Specifications

General IconGeneral
ChipsetIntel 865PE
SocketSocket 478
Supported CPUIntel Pentium 4 / Celeron
Front Side Bus800/533/400 MHz
Memory Slots4 x DIMM
Memory TypeDDR SDRAM
Max Memory4 GB
Expansion Slots1 x AGP 8X, 5 x PCI
Audio ChipsetRealtek ALC655
LAN Speed10/100Mbps
PS/22
Form FactorATX
Storage Interfaces2 x ATA100, 2 x SATA 1.5Gb/s
Audio Channels6 Channels
LAN ChipsetRealtek 8100C
USB Ports8 x USB 2.0 (4 rear, 4 via headers)
