MSI 865PE Neo3-F

E-2-22
MS-6728 ATX Mainboard

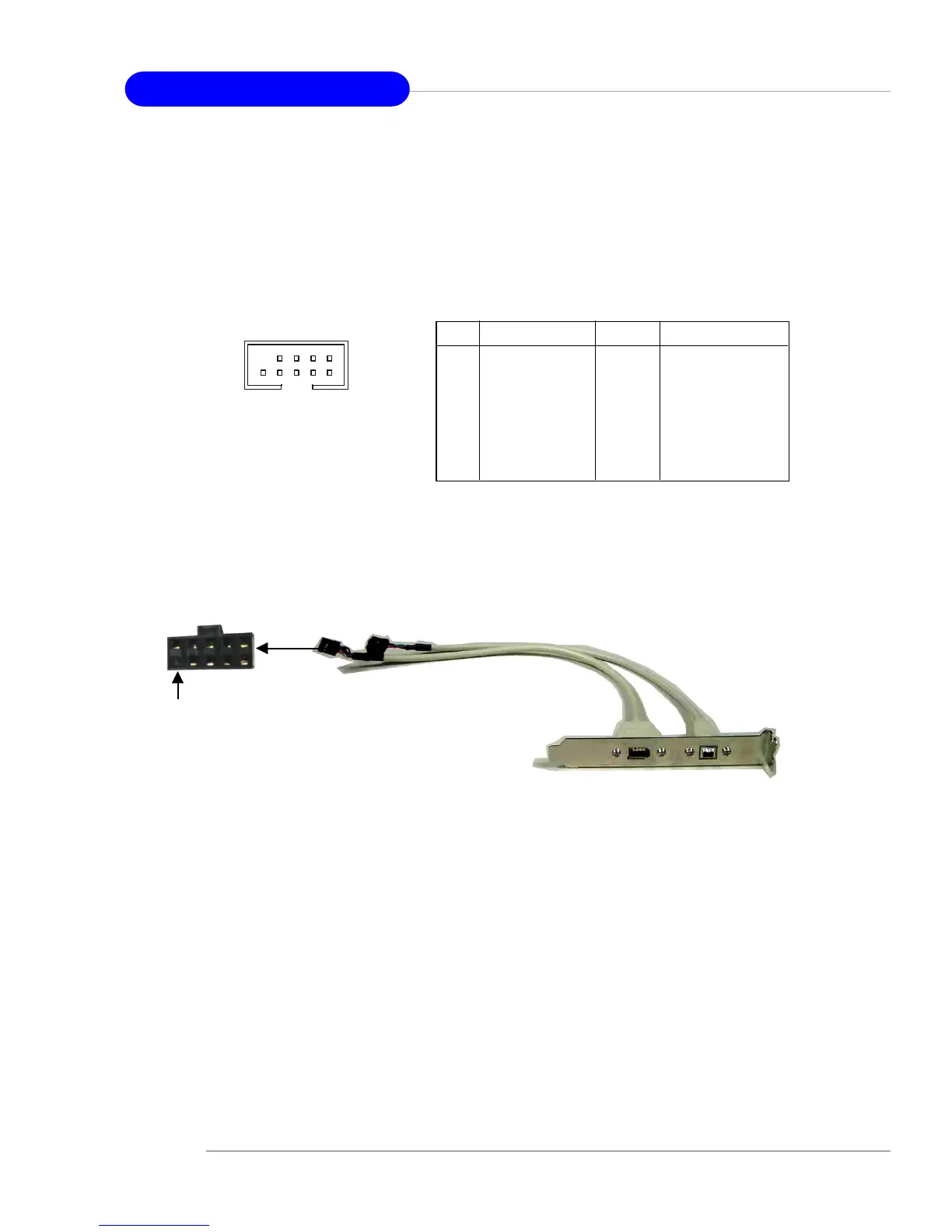

IEEE 1394 Connectors: J1394_1, J1394_2 (Optional)
The mainboard provides two 1394 pin headers that allow you to connect IEEE
1394 ports via an external IEEE1394 bracket.
Pin Definition
PIN SIGNAL PIN SIGNAL
1TPA+ 2 TPA-
3 Ground 4 Ground
5 TPB+ 6 TPB-
7 Cable power 8 Cable power
9 Key (no pin) 10 Ground
J1394_1, J394_2
1
2
9
10
IEEE1394 Bracket
Foolproof Design
