MSI 870A Fuzion Power Edition series

2-2
Hardware Setup
MS-7660
Chapter 2
Hardware Setup
MS-7660
Chapter 2
RE SET
Gr ee n
Po we r
JPWR2, p.2-9

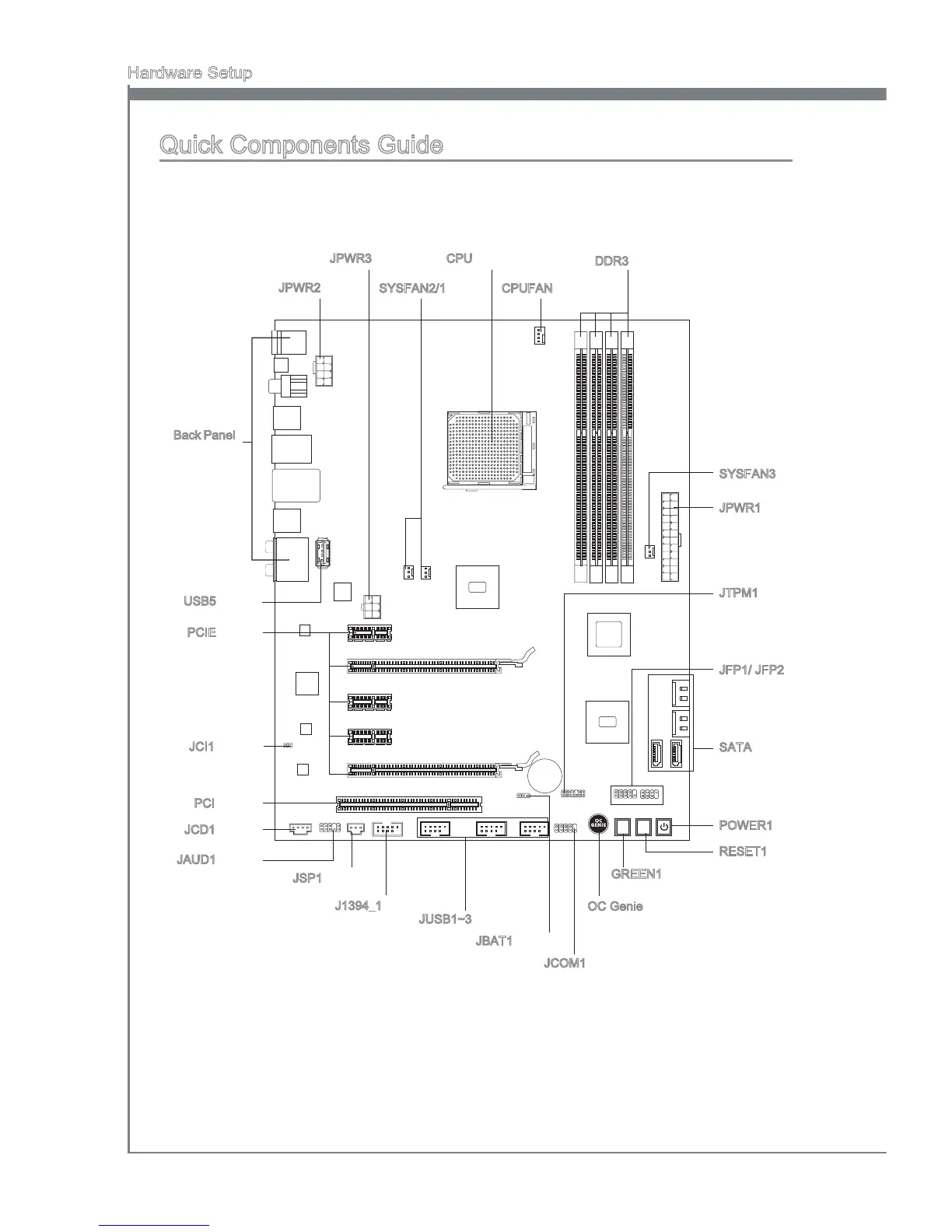

Quck Components Gude
Back Panel,
p.2-11
CPU, p.2-4
CPUFAN, p.2-14
DDR3, p.2-7
JCI1, p.2-13
JPWR1, p.2-9
JTPM1, p.2-18
SATA, p.2-13
JCD1, p.2-16
JFP1/ JFP2, p.2-15
JUSB1~3, p.2-16
JBAT1, p.2-19
JSP1, p.2-15
PCI, p.2-23
PCIE, p.2-22
OC Gene, p.2-21
JAUD1, p.2-14
SYSFAN2/1, p.2-14
JCOM1, p.2-17
SYSFAN3, p.2-14
J1394_1, p.2-17
POWER1, p.2-20
RESET1, p.2-20
GREEN1, p.2-20
JPWR3, p.2-10
USB5, p.2-16
