Realtek Audo
MS-7660
Appendx A
A-5
Realtek Audo
MS-7660
Appendx A
Hardware Default Settng
The followng dagrams are audo back panel default settng.

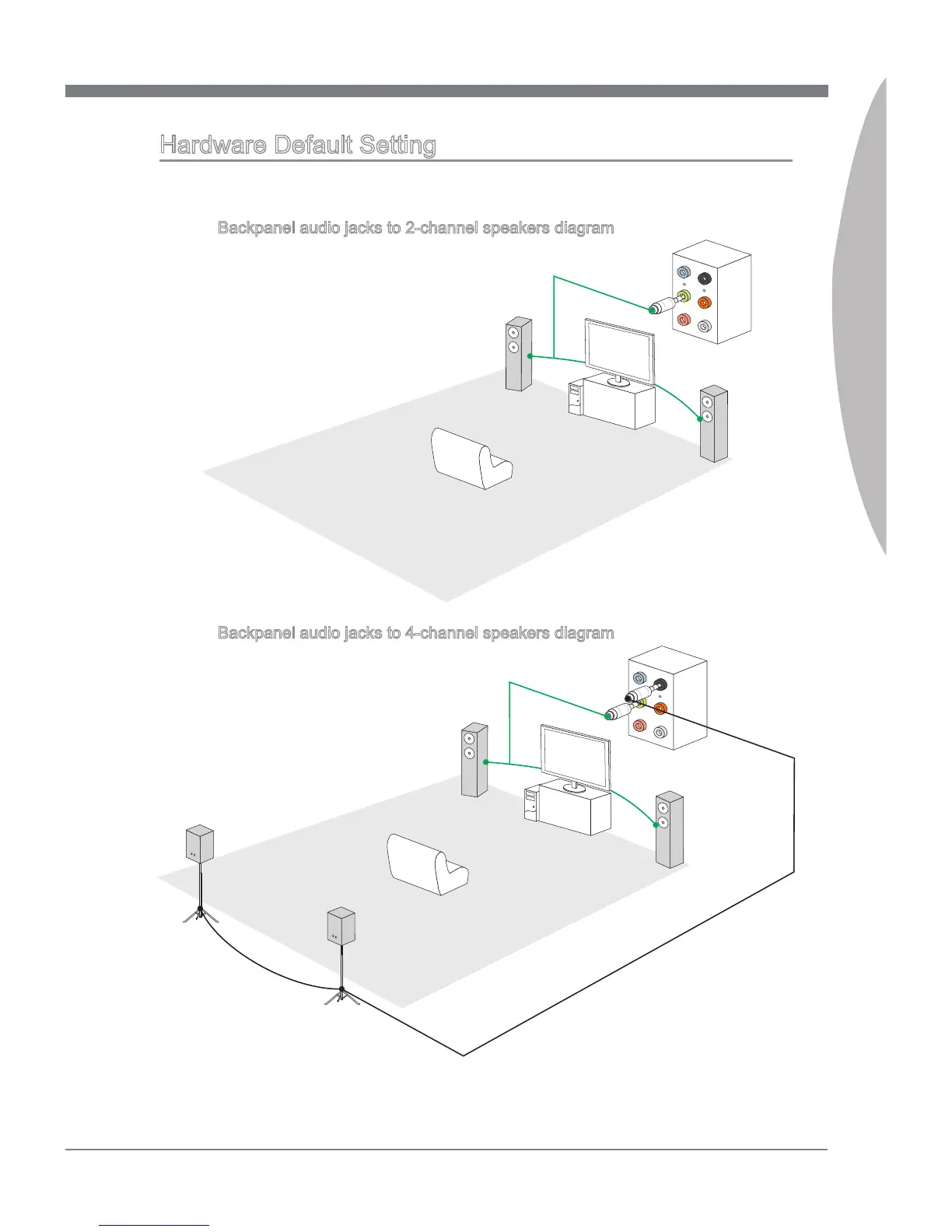

Backpanel audo jacks to 2-channel speakers dagram
Front
Backpanel audo jacks to 4-channel speakers dagram
Rear
Front
■
■
