MSI Aegis Series - Front View Component Identification

Overview
1-31-2
System Overview

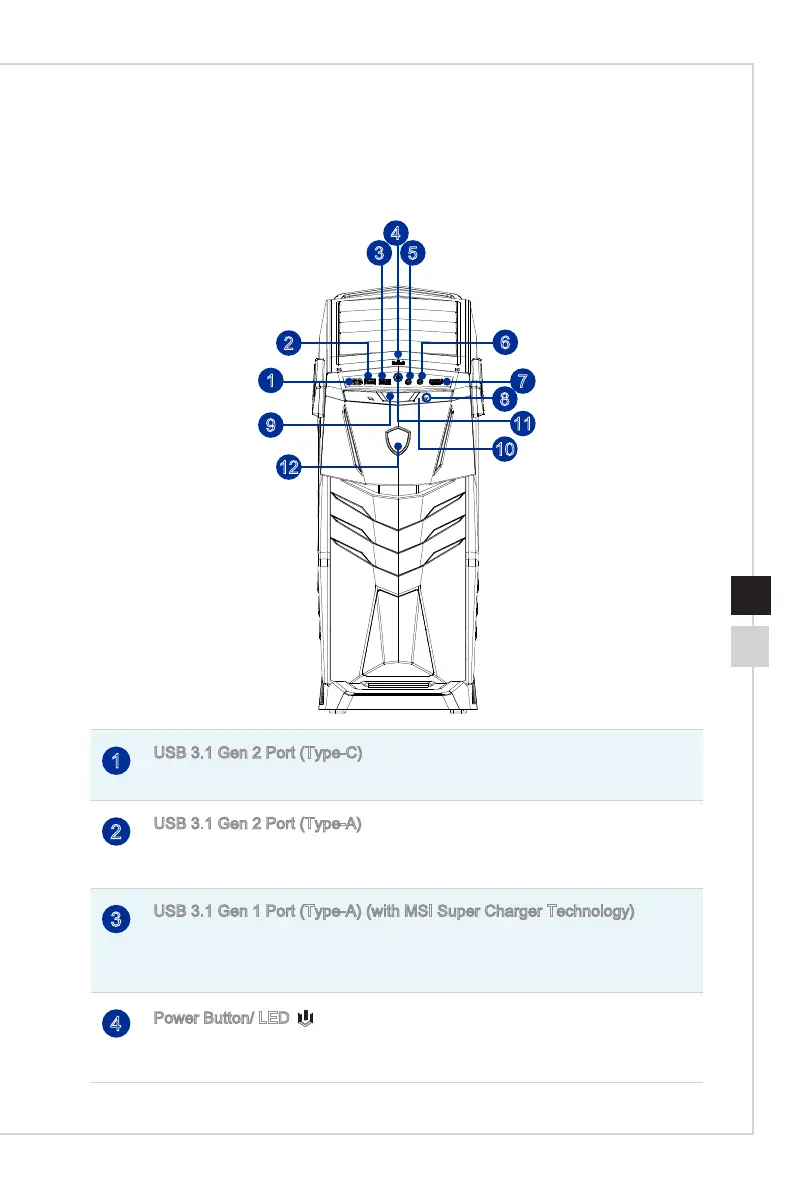

h Front View
7
8
1
11
9
10
5
4
3
12
6
2
1
USB 3�1 Gen 2 Port (Type-C)
USB Type-C port is allowing for reversible plug orientation�
2
USB 3�1 Gen 2 Port (Type-A)
The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard,
mouse, or other USB-compatible devices�
3
USB 3�1 Gen 1 Port (Type-A) (with MSI Super Charger Technology)
With MSI Super Charger Technology, not only does it function as normal USB port, but
it also enables users to charge USB devices even when the system is turned o󰘯. Users
will no longer need to power on the system just to charge USB devices�
4
Power Button/ LED
Press the power button to turn the system on and o󰘯. LED glows when the equipment
power is turned on. LED goes o󰘯 when the equipment is turned o󰘯.
