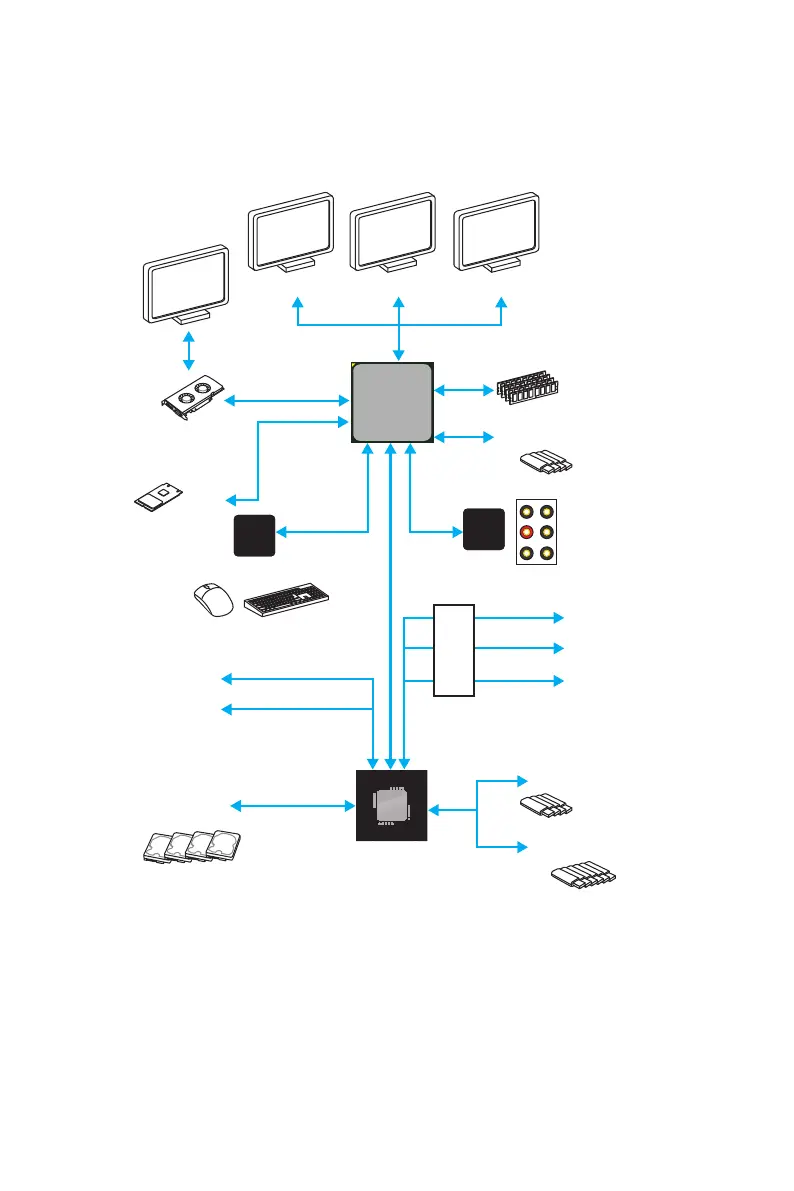

Block Diagram
Block Diagram
2 Channel DDR4 Memory
4 x USB 3.1 Gen1
1 x M.2
6 x USB 2.0
P/S2 Mouse / Keyboard
Audio Jacks
PCIe X4
Chipset
CPU
NV6795
Super I/O
Realtek
ALC892
PCI Express Bus
VGA HDMI
DVI-D
4 x USB 3.1 Gen1
PCIe x1 slot
PCIe x1 slot
PCI slot
PCI slot
4 x SATA 6Gb/s
PCIe x16 slot
Switch
(support x4 mode)

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MSI B350 TOMAHAWK and is the answer not in the manual?

MSI B350 TOMAHAWK Specifications

General IconGeneral
ChipsetAMD B350
CPU SocketAM4
Form FactorATX
Maximum Memory64 GB
AudioRealtek ALC892
LANRealtek 8111H Gigabit LAN
RAID SupportRAID 0, 1, 10
Memory Slots4
Storage Interface1 x M.2
USB Ports6 x USB 2.0
PCIe Slots1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16, 2 x PCIe 2.0 x1
