Overview of Components
M2_1: M.2 Slot (Key M)
Video Demonstration
Watch the video to learn how to Install M.2
module.
http://youtu.be/JCTFABytrYA

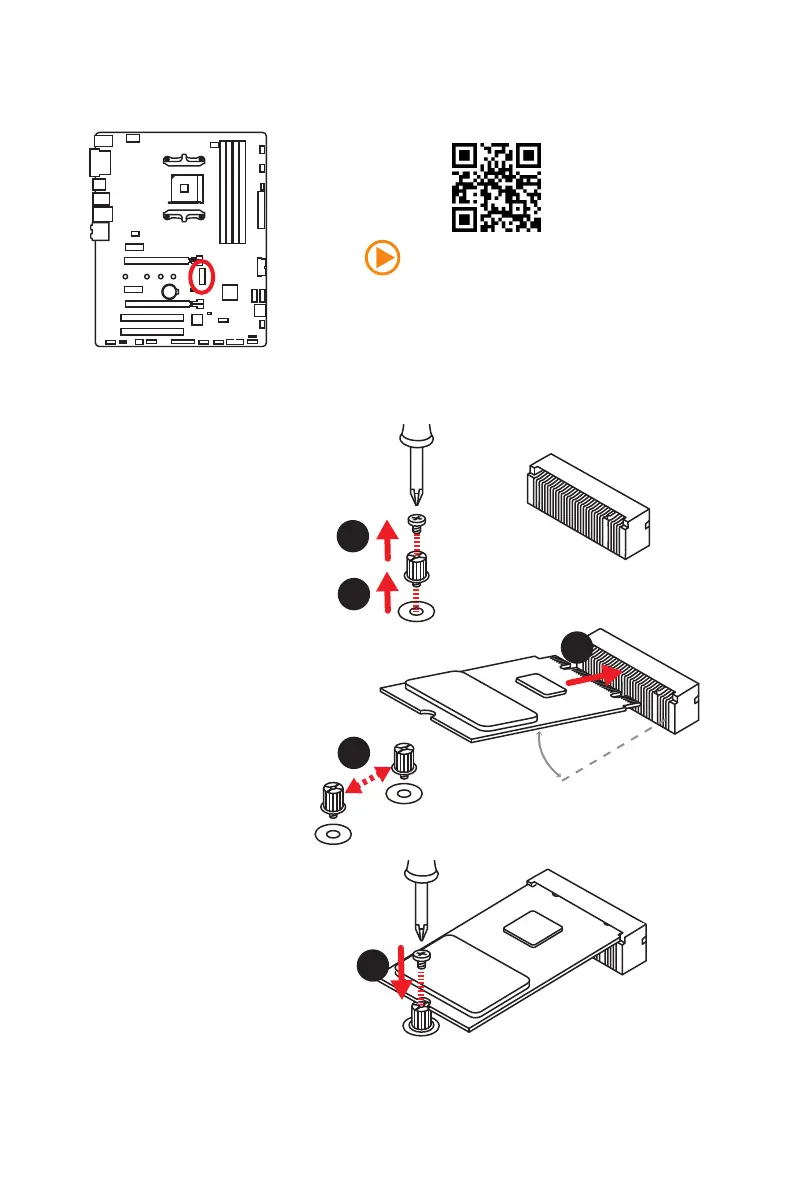

Installing M.2 module
1
2
3
30°
3. Tighten the base screw
into the hole of the
distance to the M.2 slot
as the length your M.2
module.
4. Insert your M.2 module
into the M.2 slot at a
30-degree angle.
5. Put the screw in the
notch on the trailing edge
of your M.2 module and
tighten it into the base
screw.
1. Remove the screw from
the base screw.
2. Remove the base screw.
4
5

MSI B350 TOMAHAWK Specifications

General

Chipset	AMD B350
CPU Socket	AM4
Form Factor	ATX
Maximum Memory	64 GB
Audio	Realtek ALC892
LAN	Realtek 8111H Gigabit LAN
RAID Support	RAID 0, 1, 10
Memory Slots	4
Storage Interface	1 x M.2
USB Ports	6 x USB 2.0
PCIe Slots	1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16, 2 x PCIe 2.0 x1
