Overview of Components

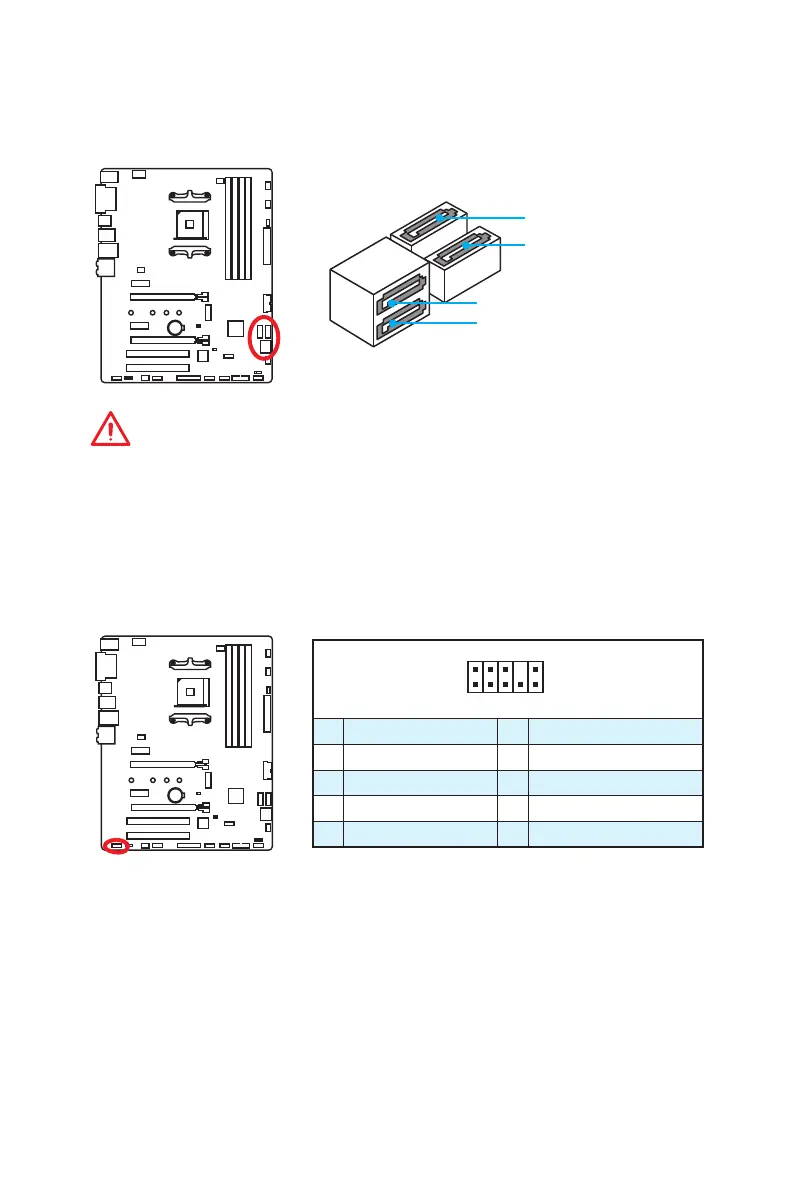

JAUD1: Front Audio Connector

This connector allows you to connect audio jacks on the front panel.

2 10

1 MIC L 2 Ground

3 MIC R 4 NC

5 Head Phone R 6 MIC Detection

7 SENSE_SEND 8 No Pin

9 Head Phone L 10 Head Phone Detection

SATA1~4: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one

SATA device.

SATA4

SATA1

SATA2

SATA3

Important

Please do not fold the SATA cable at a 90-degree angle. Data loss may result during

transmission otherwise.

SATA cables have identical plugs on either sides of the cable. However, it is

recommended that the flat connector be connected to the motherboard for space

saving purposes.
