6
Quick Start

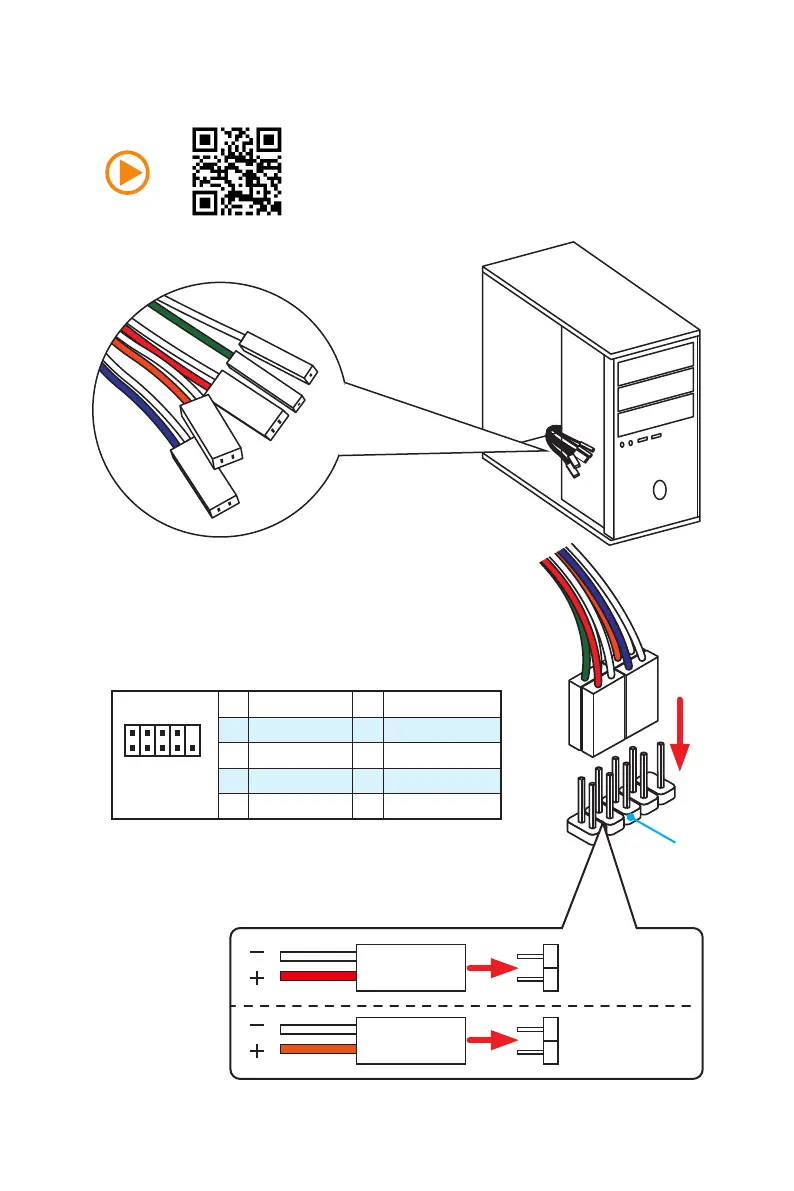

Connecting the Front Panel Header
http://youtu.be/DPELIdVNZUI
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MSI B350 TOMAHAWK and is the answer not in the manual?

MSI B350 TOMAHAWK Specifications

General IconGeneral
ChipsetAMD B350
CPU SocketAM4
Form FactorATX
Maximum Memory64 GB
AudioRealtek ALC892
LANRealtek 8111H Gigabit LAN
RAID SupportRAID 0, 1, 10
Memory Slots4
Storage Interface1 x M.2
USB Ports6 x USB 2.0
PCIe Slots1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16, 2 x PCIe 2.0 x1
