Overview of Components

BAT1

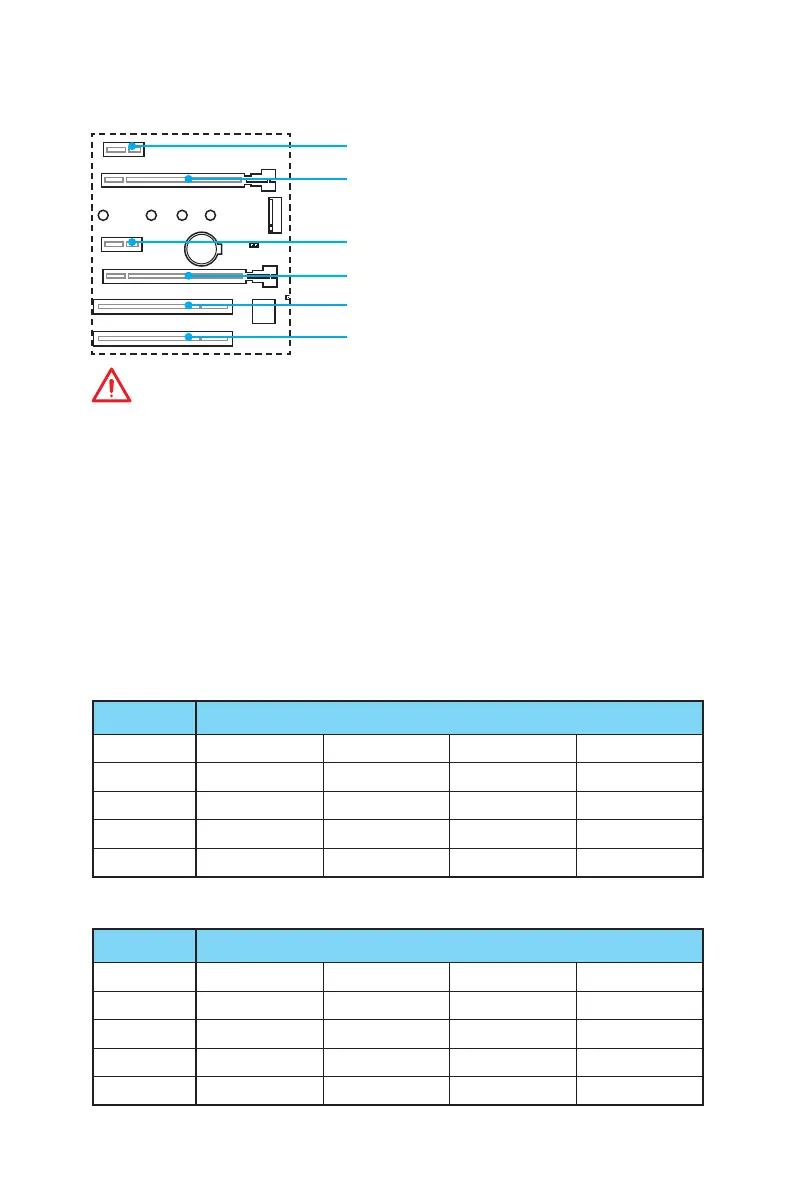

PCI_E1~4, PCI1~2: PCIe & PCI Expansion Slots

PCI_E1: PCIe 2.0 x1

PCI_E2: PCIe 3.0 x16 (RYZEN Series processors)

PCIe 3.0 x8 (7th Gen A-series/ Athlon™

processors)

PCI_E3: PCIe 2.0 x1

PCI_E4: PCIe 2.0 x4

PCI1: PCI slot

PCI2: PCI slot

Important

If you install a large and heavy graphics card, you need to use a tool such as MSI

Gaming Series Graphics Card Bolster to support its weight to prevent deformation

of the slot.

For a single PCIe x16 expansion card installation with optimum performance, using

the PCI_E2 slot is recommended.

When adding or removing expansion cards, always turn off the power supply and

unplug the power supply power cable from the power outlet. Read the expansion

card’s documentation to check for any necessary additional hardware or software

changes.

Only when both PCIe x1 slots are empty, this motherboard could support AMD

CrossFire™ technology.

PCIe bandwidth table

For RYZEN series processors

Slot Bandwidth

PCI_E1 Empty 2.0 x1 Empty 2.0 x1

PCI_E2 3.0 x16 3.0 x16 3.0 x16 3.0 x16

PCI_E3 Empty Empty 2.0 x1 2.0 x1

PCI_E4 2.0 x4 2.0 x2 2.0 x2 2.0 x2

M2_1 3.0 x4 3.0 x4 3.0 x4 3.0 x4

For 7th Gen A-series/ Athlon™ processors

Slot Bandwidth

PCI_E1 Empty 2.0 x1 Empty 2.0 x1

PCI_E2 3.0 x8 3.0 x8 3.0 x8 3.0 x8

PCI_E3 Empty Empty 2.0 x1 2.0 x1

PCI_E4 2.0 x4 2.0 x2 2.0 x2 2.0 x2

M2_1 3.0 x2 3.0 x2 3.0 x2 3.0 x2
