Rear I/O Panel

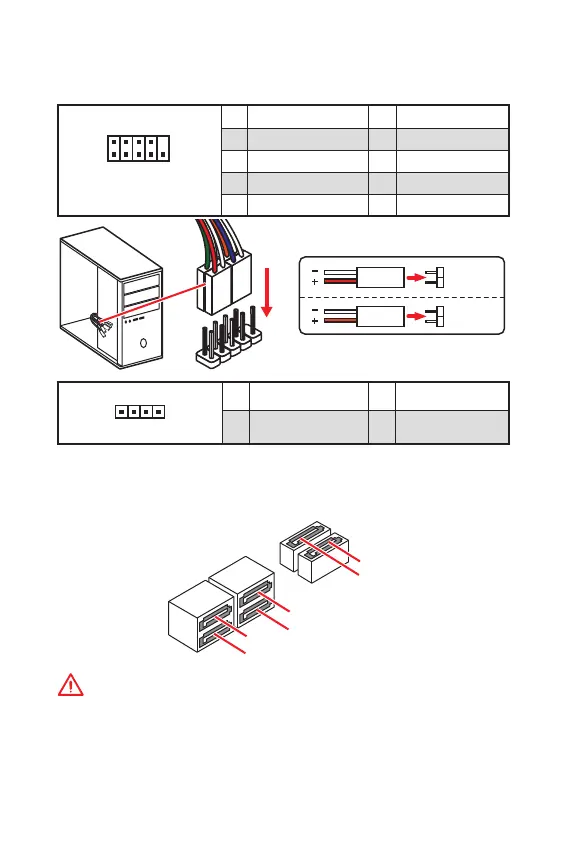

SATA1~6: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one

SATA device.

SATA3

SATA5

SATA4

SATA1

SATA2

SATA6

Important

The SATA1 port will be unavailable when an M.2 SATA SSD module has been

installed in the M.2 slot.

Please do not fold the SATA cable at a 90-degree angle. Data loss may result during

transmission otherwise.

SATA cables have identical plugs on either sides of the cable. However, it is

recommended that the flat connector be connected to the motherboard for space

saving purposes.

JFP1, JFP2: Front Panel Connectors

These connectors connect to the switches and LEDs on the front panel.

2 10

JFP1

1 HDD LED + 2 Power LED +

3 HDD LED - 4 Power LED -

5 Reset Switch 6 Power Switch

7 Reset Switch 8 Power Switch

9 Reserved 10 No Pin

JFP2

1 Speaker - 2 Buzzer +

3 Buzzer - 4 Speaker +

HDD LED

RESET SW

HDD LED

HDD LED -

HDD LED +

POWER LED -

POWER LED +

POWER LED

JFP1
