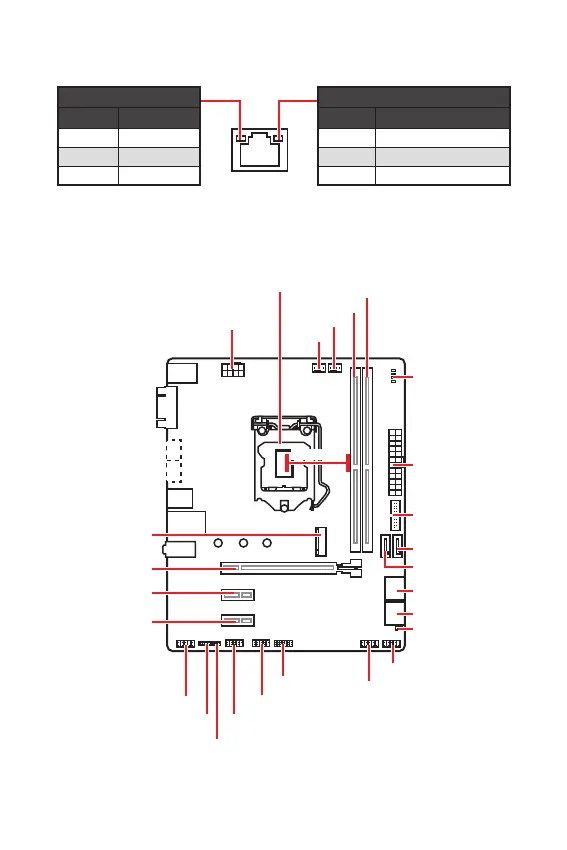

Rear I/O Panel Overview of Components

Link/ Activity LED

Status Description

Off No link

Yellow Linked

Blinking Data activity

Speed LED

Status Description

Off 10 Mbps connection

Green 100 Mbps connection

Orange 1 Gbps connection

LAN Port LED Status Table

Overview of Components

CPU_FAN1

ATX_PWR1

EZ Debug LED

CPU Socket

PCI_E1

SYS_FAN1

PCI_E2

PCI_E3

JCI1

DIMMA1

DIMMB1

SATA1

SATA2

JBAT1

JFP1

JFP2

CPU_PWR1

JUSB2

JUSB1

JTPM1

JUSB3

JCOM1

JAUD1

SATA34

SATA56

M2_1

(B365M PRO-VD,

B365M PRO-VH,

B365M PLUS)

* Distance from the center of the CPU to the nearest DIMM slot.

50.83mm*

Other manuals for MSI B365M WIND

Manual152 pages

Questions and Answers:

Need help?

Do you have a question about the MSI B365M WIND and is the answer not in the manual?

MSI B365M WIND Specifications

General

Form Factor	Micro ATX
Chipset	Intel B365
Socket	LGA 1151
Maximum Memory	64 GB
Memory Speed	DDR4 2666/2400/2133 MHz
Audio	Realtek ALC887
LAN	Realtek 8111H Gigabit LAN
RAID Support	RAID 0, 1, 5, 10
Storage Interface	6 x SATA 6Gb/s
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
Memory Slots	4 x DIMM
