MSI B450 TOMAHAWK MAX User Manual

35

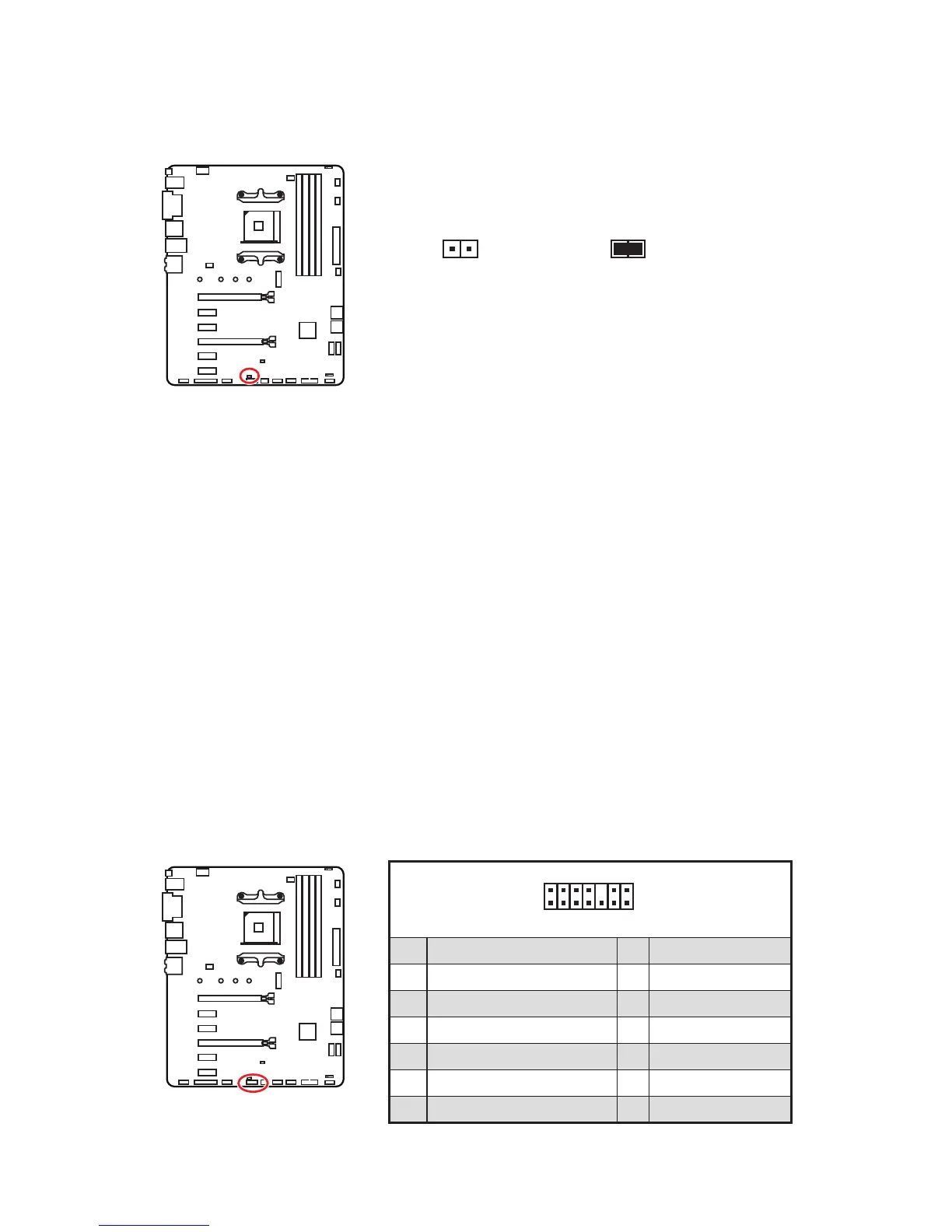

Overview of Components
JCI1: Chassis Intrusion Connector
This connector allows you to connect the chassis intrusion switch cable.
Normal
(default)
Trigger the chassis
intrusion event
Using chassis intrusion detector
1. Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis.
2. Close the chassis cover.
3. Go to BIOS > SETTINGS > Security > Chassis Intrusion Configuration.
4. Set Chassis Intrusion to Enabled.
5. Press F10 to save and exit and then press the Enter key to select Yes.
6. Once the chassis cover is opened again, a warning message will be displayed on
screen when the computer is turned on.
Resetting the chassis intrusion warning
1. Go to BIOS > SETTINGS > Security > Chassis Intrusion Configuration.
2. Set Chassis Intrusion to Reset.
3. Press F10 to save and exit and then press the Enter key to select Yes.
1
2 14
13
1 LPC Clock 2 3V Standby power
3 LPC Reset 4 3.3V Power
5 LPC address & data pin0 6 Serial IRQ
7 LPC address & data pin1 8 5V Power
9 LPC address & data pin2 10 No Pin
11 LPC address & data pin3 12 Ground
13 LPC Frame 14 Ground
JTPM1: TPM Module Connector
This connector is for TPM (Trusted Platform Module). Please refer to the TPM security
platform manual for more details and usages.

MSI B450 TOMAHAWK MAX Specifications

General

Form Factor	atx
Chipset	amd b450
Processor Socket	socket am4
Processor Compatibility	amd ryzen 3 2000 series, amd ryzen 5 2000 series, amd ryzen 7 2000 series, amd ryzen 3 3000 series, amd ryzen 5 3000 series, amd ryzen 7 3000 series, amd ryzen 3 4000 series, amd ryzen 5 4000 series, amd ryzen 7 4000 series, amd ryzen 7
Maximum Memory	64 gigabytes
Power Connector	24-pin main power connector, 8-pin atx12v connector
PCI Bus Slots	5
Memory Slots	4

Weight and Dimensions

Width	12 inches
