MSI B450 TOMAHAWK MAX User Manual

57
BIOS Setup

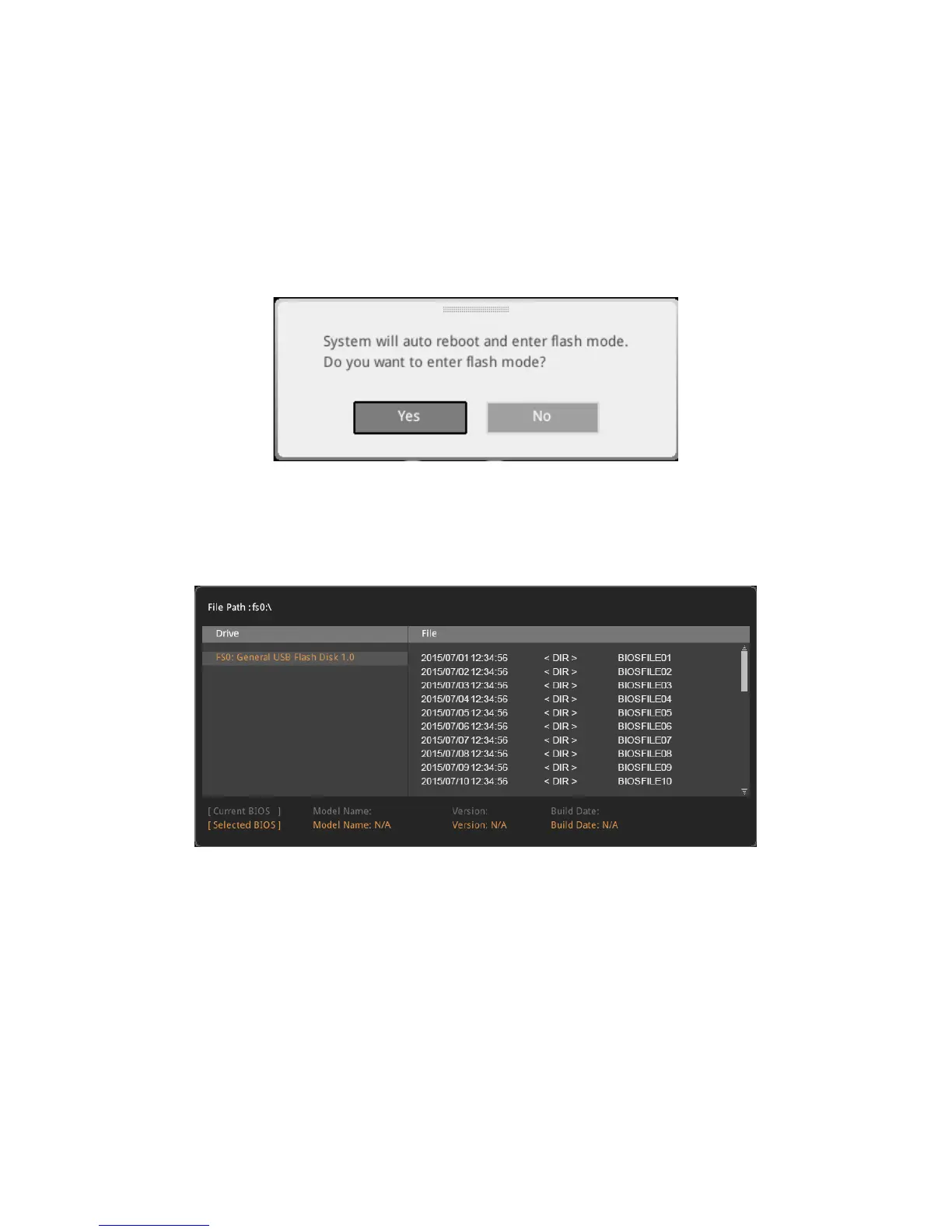

M-FLASH
M-FLASH provides the way to update BIOS with a USB flash drive. Please download
the latest BIOS file that matches your motherboard model from MSI website, save the
BIOS file into your USB flash drive. And then follow the steps below to update BIOS.
1. Insert the USB flash drive that contains the update file into the computer.
2. Click on M-FLASH tab, a demand message will be prompted. Click on Yes to
reboot and enter the flash mode.
3. The system will enter the flash mode and a file selection menu will appear after
rebooting.
4. Select a BIOS file to perform the BIOS update process.
5. After the flashing process is 100% completed, the system will reboot
automatically.

MSI B450 TOMAHAWK MAX Specifications

General

Form Factor	atx
Chipset	amd b450
Processor Socket	socket am4
Processor Compatibility	amd ryzen 3 2000 series, amd ryzen 5 2000 series, amd ryzen 7 2000 series, amd ryzen 3 3000 series, amd ryzen 5 3000 series, amd ryzen 7 3000 series, amd ryzen 3 4000 series, amd ryzen 5 4000 series, amd ryzen 7 4000 series, amd ryzen 7
Maximum Memory	64 gigabytes
Power Connector	24-pin main power connector, 8-pin atx12v connector
PCI Bus Slots	5
Memory Slots	4

Weight and Dimensions

Width	12 inches
