MSI B450 TOMAHAWK MAX User Manual

5
Quick Start

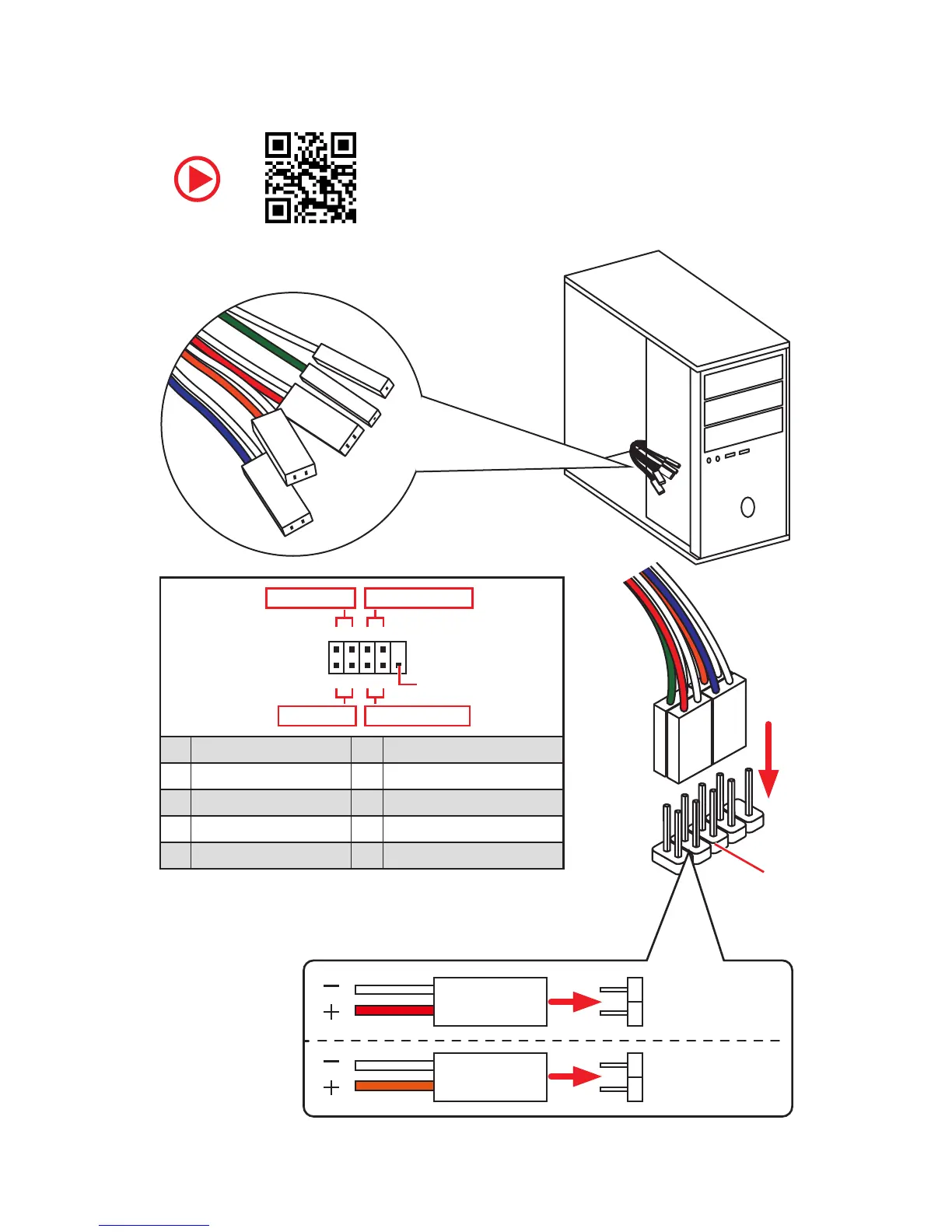

Connecting the Front Panel Header
http://youtu.be/DPELIdVNZUI
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin

MSI B450 TOMAHAWK MAX Specifications

General

Form Factor	atx
Chipset	amd b450
Processor Socket	socket am4
Processor Compatibility	amd ryzen 3 2000 series, amd ryzen 5 2000 series, amd ryzen 7 2000 series, amd ryzen 3 3000 series, amd ryzen 5 3000 series, amd ryzen 7 3000 series, amd ryzen 3 4000 series, amd ryzen 5 4000 series, amd ryzen 7 4000 series, amd ryzen 7
Maximum Memory	64 gigabytes
Power Connector	24-pin main power connector, 8-pin atx12v connector
PCI Bus Slots	5
Memory Slots	4

Weight and Dimensions

Width	12 inches
