Overview of Components

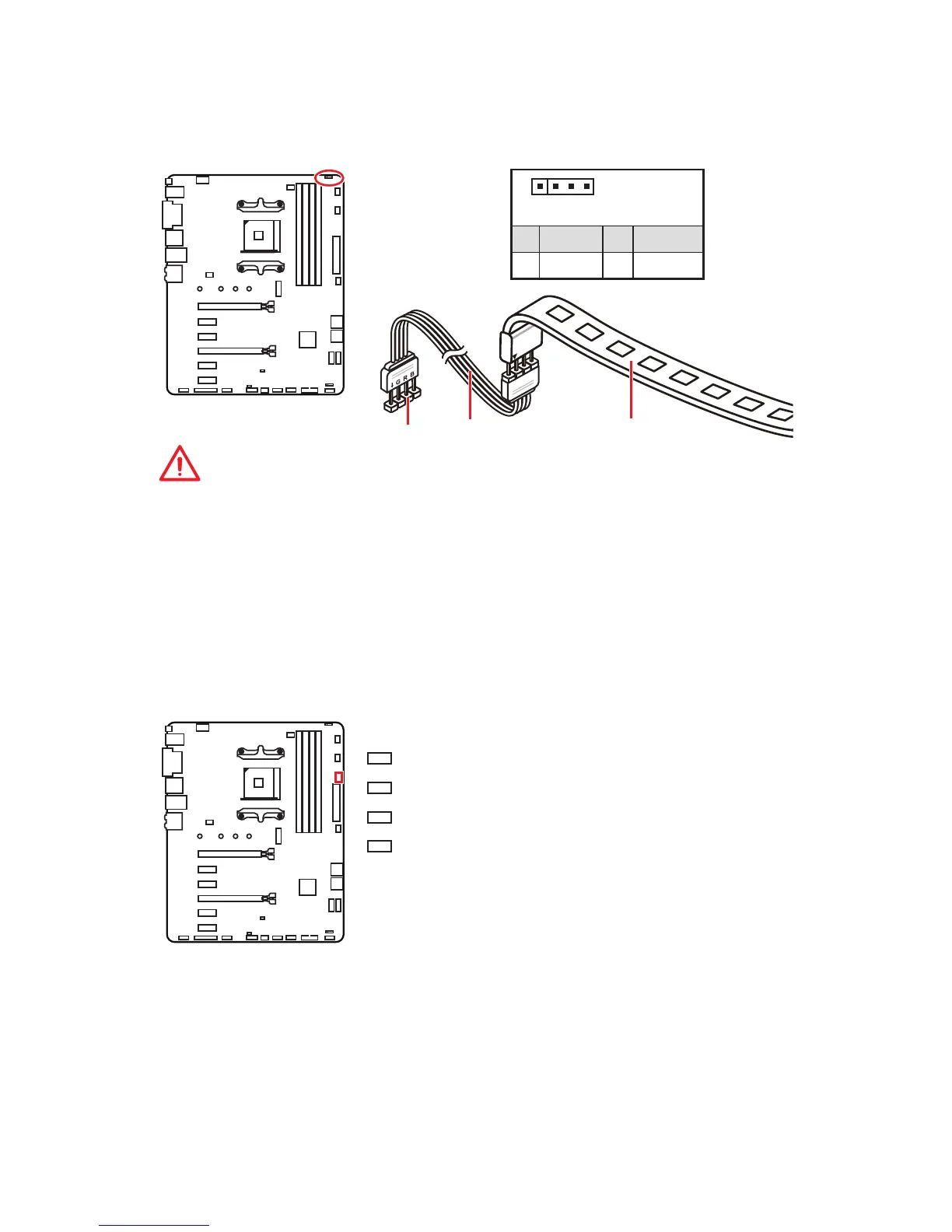

JRGB1: RGB LED connectors
The JRGB1 connector allows you to connect the 5050 RGB LED strips 12V.
Important
y The JRGB1/ JRGB2 connector supports up to 2 meters continuous 5050 RGB LED
strips (12V/G/R/B) with the maximum power rating of 3A (12V).
y Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
y Please use MSI’s software to control the extended LED strip.
1
JRGB1
Extension cable
5050 RGB LED strips 12V
1
JRGB1/2
1 +12V 2 G
3 R 4 B
EZ Debug LEDs
These LEDs indicate the status of key components during booting process. When an
error is occurred, the corresponding LED stays lit until the problem is solved.
CPU - indicates CPU is not detected or fail.
DRAM - indicates DRAM is not detected or fail.
VGA - indicates GPU is not detected or fail.
BOOT - indicates the booting device is not detected
or fail.

MSI B450 TOMAHAWK MAX Specifications

General

Form Factor	atx
Chipset	amd b450
Processor Socket	socket am4
Processor Compatibility	amd ryzen 3 2000 series, amd ryzen 5 2000 series, amd ryzen 7 2000 series, amd ryzen 3 3000 series, amd ryzen 5 3000 series, amd ryzen 7 3000 series, amd ryzen 3 4000 series, amd ryzen 5 4000 series, amd ryzen 7 4000 series, amd ryzen 7
Maximum Memory	64 gigabytes
Power Connector	24-pin main power connector, 8-pin atx12v connector
PCI Bus Slots	5
Memory Slots	4

Weight and Dimensions

Width	12 inches
