CX600（MS-1682）Disassemble Guide
3、HDD MODULE

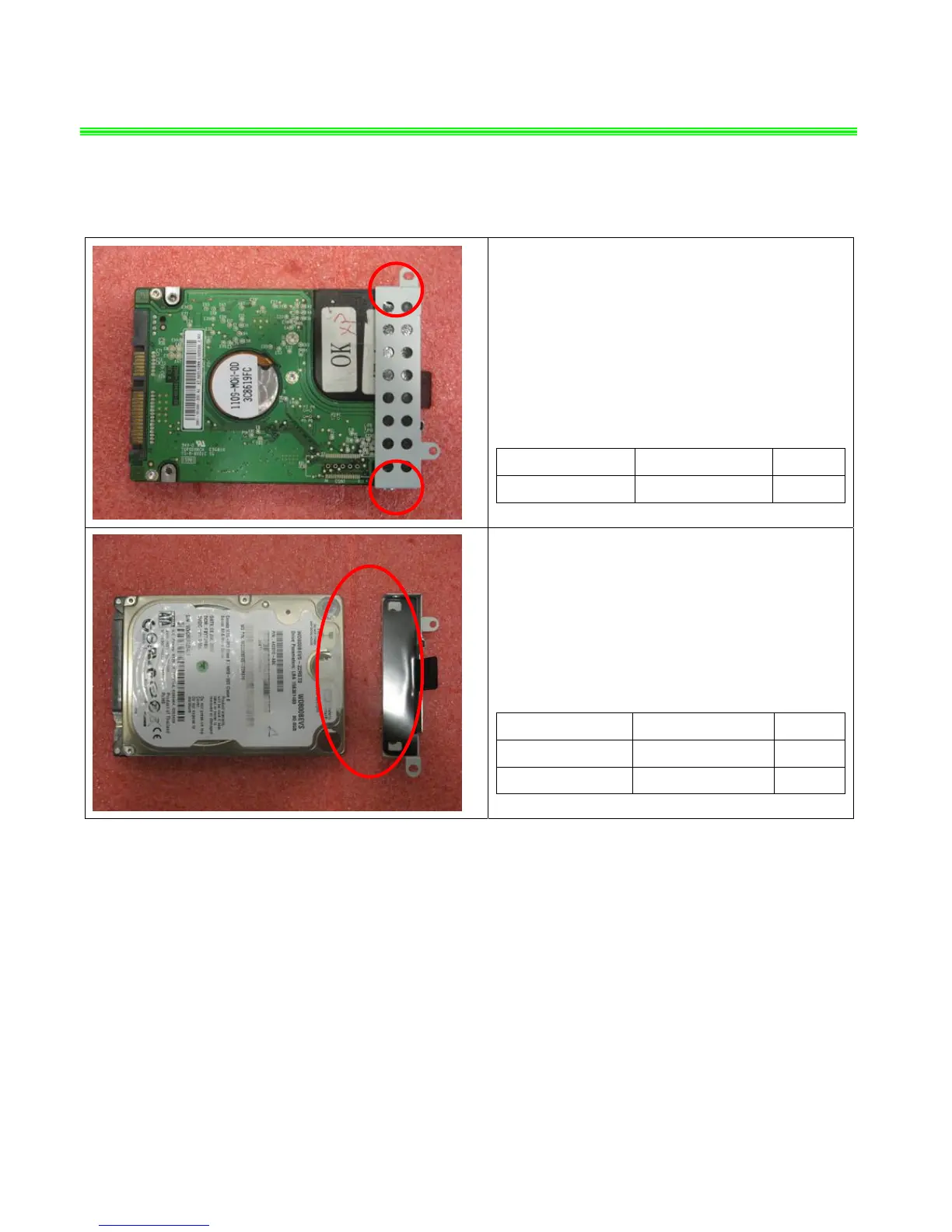

3.3：Remove the 2 screws(M3*3.5mm)
that stabilize the bracket;
Attention: the screw driver torque is 2.0-2.5Kgf-cm
Component P/N Qty
Screw E43-1303501-H29 2
3.4：Remove the HDD bracket;
Component P/N Qty
HDD Bracket 307-6810111-A89 1
HDD Module S71-2425521-W36 1
To Next Page
