CX61/CR61 (MS-16GB)Disassembly Guide
5、ODD MODULE

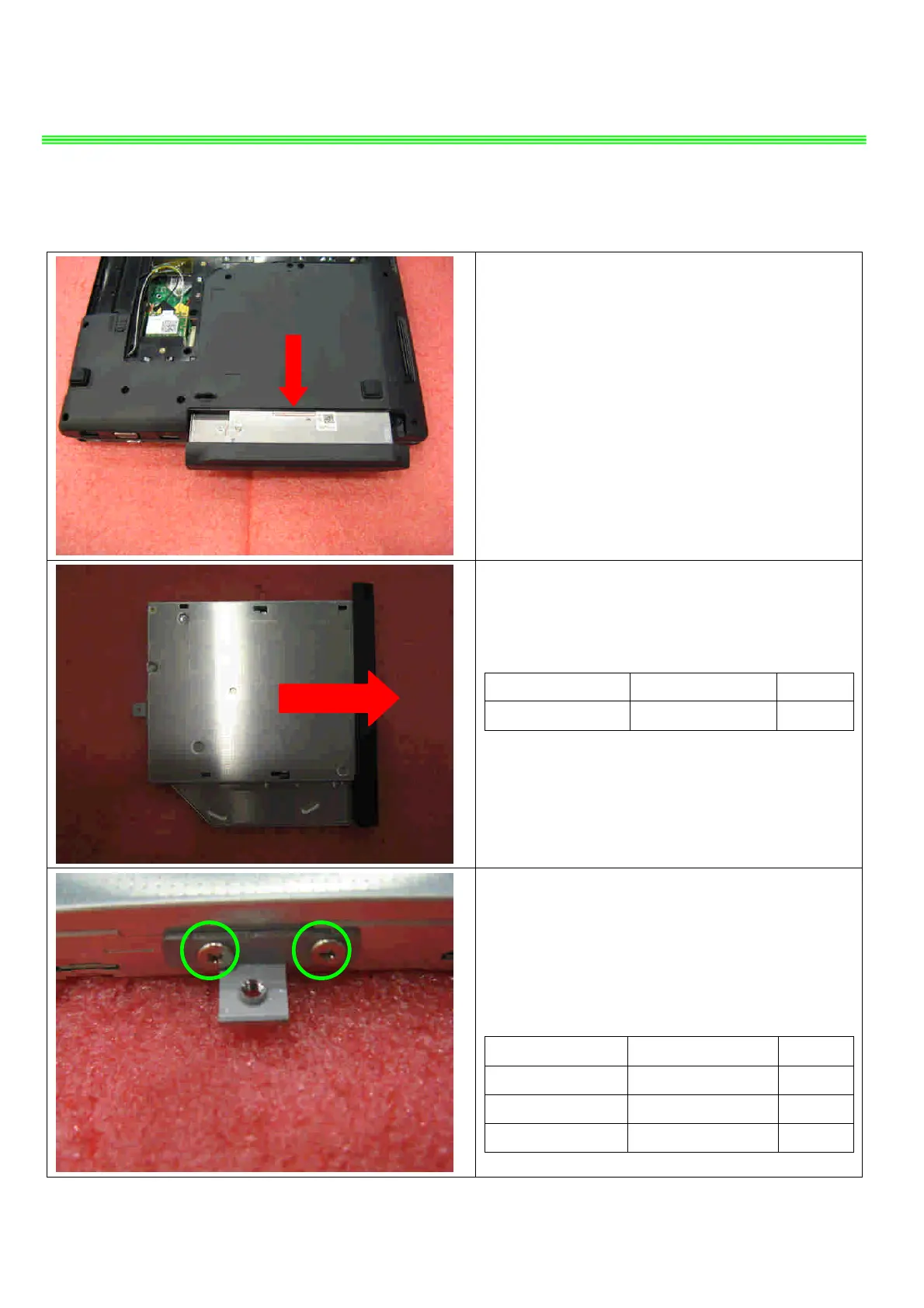

5.1：Remove the ODD Module according to the
direction as pic shows.
5.2：Remove ODD Bezel as below.
Component P/N Qty
ODD Bezel E2P-6G1F221-P89 1
5.3：Remove 2pcs (M2*3mm) Screws; Then remove
ODD Bracket as below.
Attention：the screw driver torque is 1.5-2.0Kgf-cm
Component P/N Qty
Screw E43-1203003-H29 2
ODD Bracket E2M-6G10711-A89 1
ODD Module S7D-2270076-T87 1
To Next Page
